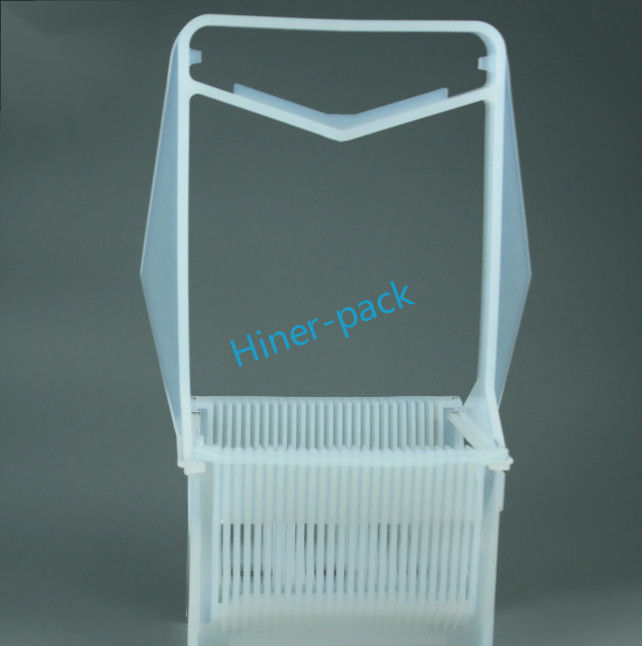

Silicon Wafer Holder Cassette Box White FTA Material Humanized Design Low Outgassing

Brand Name:	Hiner-pack
Model Number:	WCS-HN150~200mm
MOQ:	50PCS(Negotiable)
Price:	Need to communicate
Delivery Time:	2~3 Weeks
Payment Terms:	100% Prepayment

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Patent Design LPC IC Report

Temperature Range:

According To Different Materials

Material:

FTA

Wafer Diameter:

150~200mm

Cleanliness:

Clean Room Use

Handle:

Ergonomic

Finish:

Injection

Humidity Range:

0-100%

Color:

Accept Customization

Packaging Details:

Double Pack After Cleaning

Supply Ability:

About 600pcs Per Day

Highlight:

Custom wafer holder

FTA wafer holder

Wafer semiconductor box

Product Description

Product Description:

Cassette wafer box is a container specifically designed for storing and transporting wafers, widely used in semiconductor manufacturing and the electronics industry.
Its main function is to protect the safety of wafers during production, transportation, and storage, preventing scratches, contamination, and electrostatic damage.

Features:

Product Name	Wafer Cassette Box
Outher Size	124158124mm
Cleanliness	Clean Room Use
Material	FTA
Wafer Diameter	150~200mm
Features	Transport Wafer, Intra-plant Turnover

Easy to clean:Smooth surface: easy to clean and maintain, reducing the residue of particles and pollutants, ensuring the cleanliness of the wafer
Transportation and Storage- Stability: The design ensures that the wafer will not slide or be damaged during transportation, providing a stable storage environment.

Applications:

Wafer Fabrication

Production line use: Cassette boxes are used to store and transport wafers during the wafer production process, ensuring safe and effective management between different processes.

Testing and Inspection

Testing phase: During the wafer testing and inspection phase, the cassette box is used to store the wafers to be tested, ensuring their safety and stability during the testing process.

Cleaning and processing

Cleaning process: During the wafer cleaning process, the cassette can conveniently place the wafer to ensure that it is not contaminated after cleaning.

Attention:

Preparation:

♦Check the cassette box: Ensure that the cassette box is intact, without cracks or damage.

♦Cleaning the Cassette Box: If necessary, use appropriate cleaning agents to clean the Cassette Box to ensure no contamination.

Loading wafers

♦Careful placement: Gently place the wafer into each slot of the cassette box, ensuring that the wafer is fully seated in the slot and avoiding tilting or contact with other wafers.
♦Avoid direct contact: Use tweezers and other tools as much as possible to avoid direct contact between fingers and the wafer surface, in order to reduce the risk of static electricity and contamination.

Transportation and Storage

♦Proper handling: When handling the cassette, keep it level and avoid violent shaking to reduce the impact on the wafer.
♦Storage location: Place the cardboard box in a dry and clean environment, avoiding direct sunlight and high temperatures.

Packing and Shipping:

The Wafer Cassette Box should be packaged with a suitable shipping container to ensure that it is not damaged or exposed to any hazards during transportation. We recommend that the box be secured within a strong corrugated cardboard box and surrounded with plenty of polystyrene foam or other cushioning material.
To ensure the box is not damaged during transit, it should be sealed with waterproof adhesive tape and clearly labeled with the required shipment details. The box should also be clearly marked with “Fragile” and “Handle With Care” stickers.
