Designed for secure transport of single wafers mounted on film frames

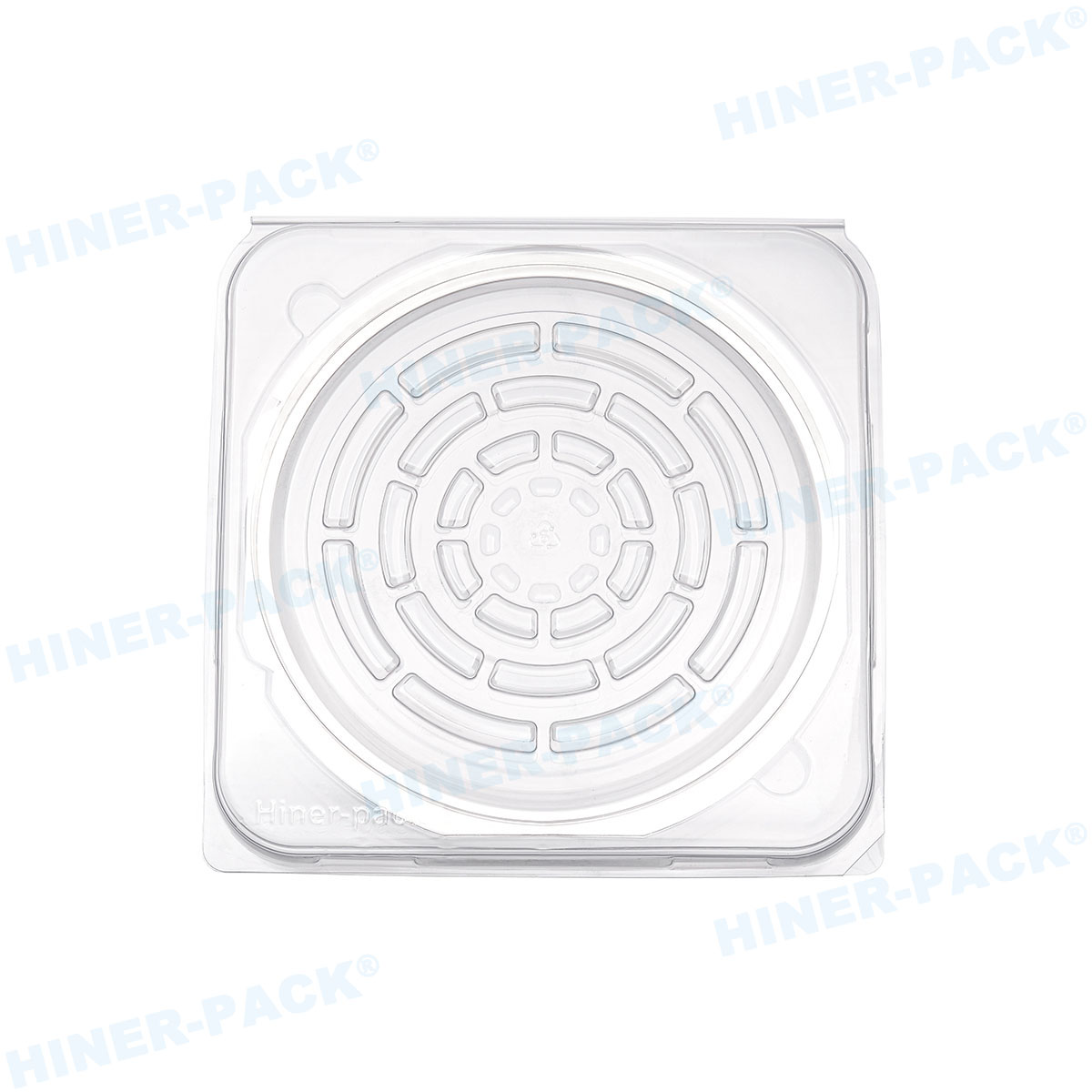

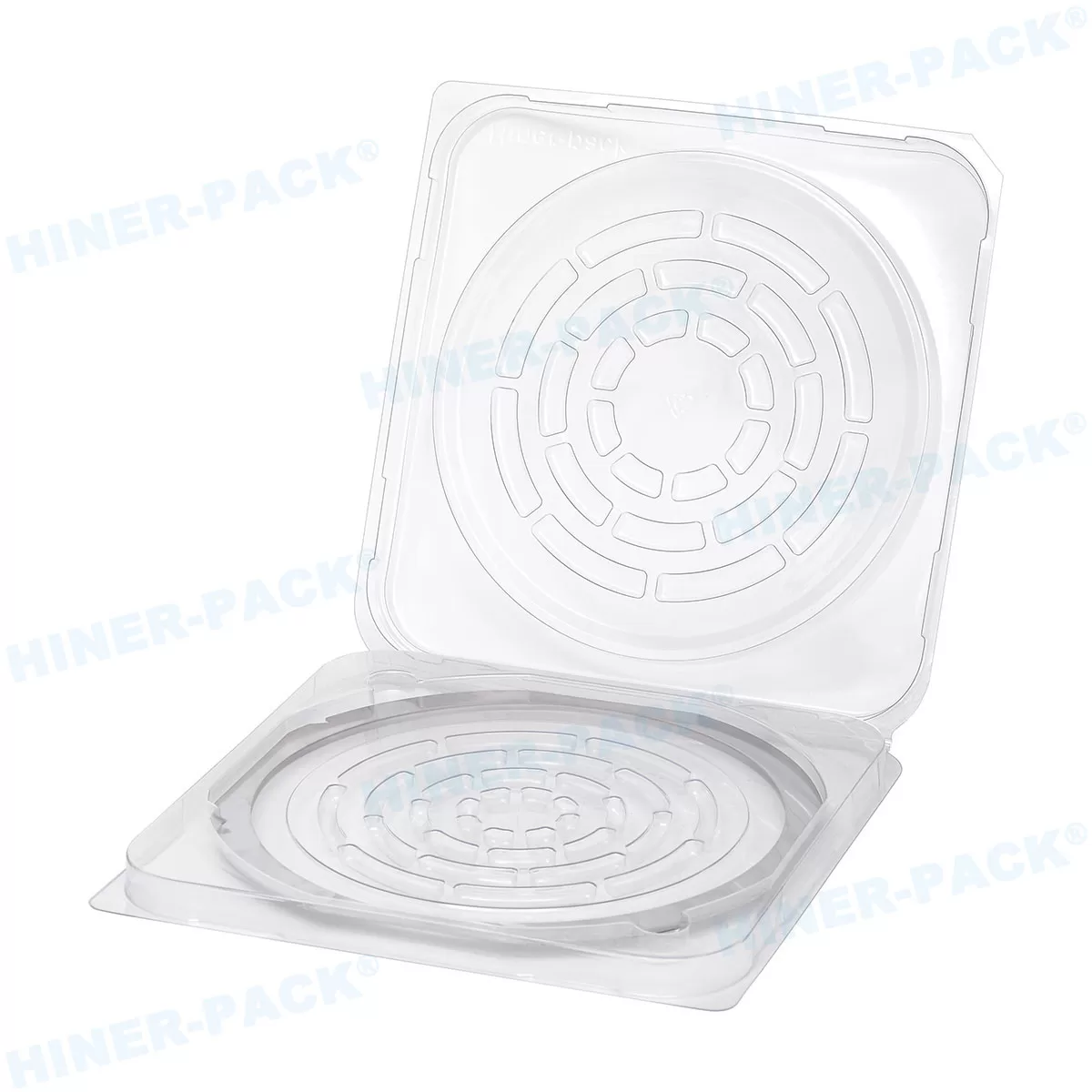

The vacuum-formed flex frame single wafer shippers provide a lightweight, safe, and ergonomic means to ship and store single wafers mounted on flex, dicing, or film frames. Flex frame shippers are designed to protect the frame and to prevent any contact with the wafer surface. The clamshell-style design has significantly elevated the standards of safety and efficiency in wafer transportation. These shippers, available in both black and clear color variants, cater to the nuanced demands of semiconductor shipping, ensuring optimal protection against environmental threats and electrostatic discharge (ESD). The conductivity of the material is tailored to mitigate the risks of ESD, safeguarding the electrical integrity of wafers, and the transparent properties of the material can excel in providing a clear view of the contained wafer, thus facilitating easy inspection without compromising the sterile environment crucial for semiconductor components.
• Safe transport of single wafers on film/flex/dicing frames
• Secure storage and transportation for delicate semiconductor wafers
• Use in cleanroom environments for wafer handling
• Eco-friendly and cost-effective wafer shipping option
| BASIC INFORMATION | ||
|---|---|---|
| Part Number | Collocation Reference | Wafer Size |
| SVFWS-12-NP | Wafer Shipper+Frame | 12"/300 mm |
| Metarial | Maximum Capacity | Color |
| PET | 1 | Transparent |
| Delivery Time | Usually 2-3 weeks, depending on order quantity |
* For more sizes or customization needs, please contact our team. We offer one-stop packaging solutions for your products.
| TECHNICAL DATA | ||
|---|---|---|
| PROPERTY | RATED VALUES | UNIT |
| Thickness | 0.01-1.00 (+0.01) | mm |
| Width | 510-780 (+1.0) | mm |
| Density | 1.33 | g/cm³ |
| Strength | >60 | MPa |
| Percentage of Breaking Elongation | >200 | % |
| Light Transmittance | >92 | % |
| Glossiness | 100 | % |
| Point Defects | 1.2 m< 1 | -- |
| Bubble | Without | -- |
| Specific Viscosity | 0.800+0.020 | iv/g |
| Flame Spot | >243+3 | °C |
| Terminal Acid Group | <30 | mol. |
| Color Value | L>80B<1.0 | ---- |
| Crystallinity | 50~60 | % |
| Diethylene Glycol | <1.6 | % |
| Acetaldehyde | <2.0 | % |
| Moisture | <0.4 | % |
| Ash | <0.02 | % |
| Antistatic Agent | <2.0 | % |
* The above data are typical laboratory values and are only used as a reference, not as a guarantee for quality indicators or any other use.
