Spring Box For 2-inch Waffle Pack

- Stops die movement and loss in transit
- Offsets normal tray or lid warpage that can create gaps leading to die migration
- Available in static-dissipative or conductive formulations

Top of Page

Description

Waffle Pack/Chip Tray Clip is an accessory that locks the tray and cover together by applying uniform compression along the tray edges. This prevents die movement, offsets lid or tray warpage, and ensures stack stability during handling, shipping, or automated processing.

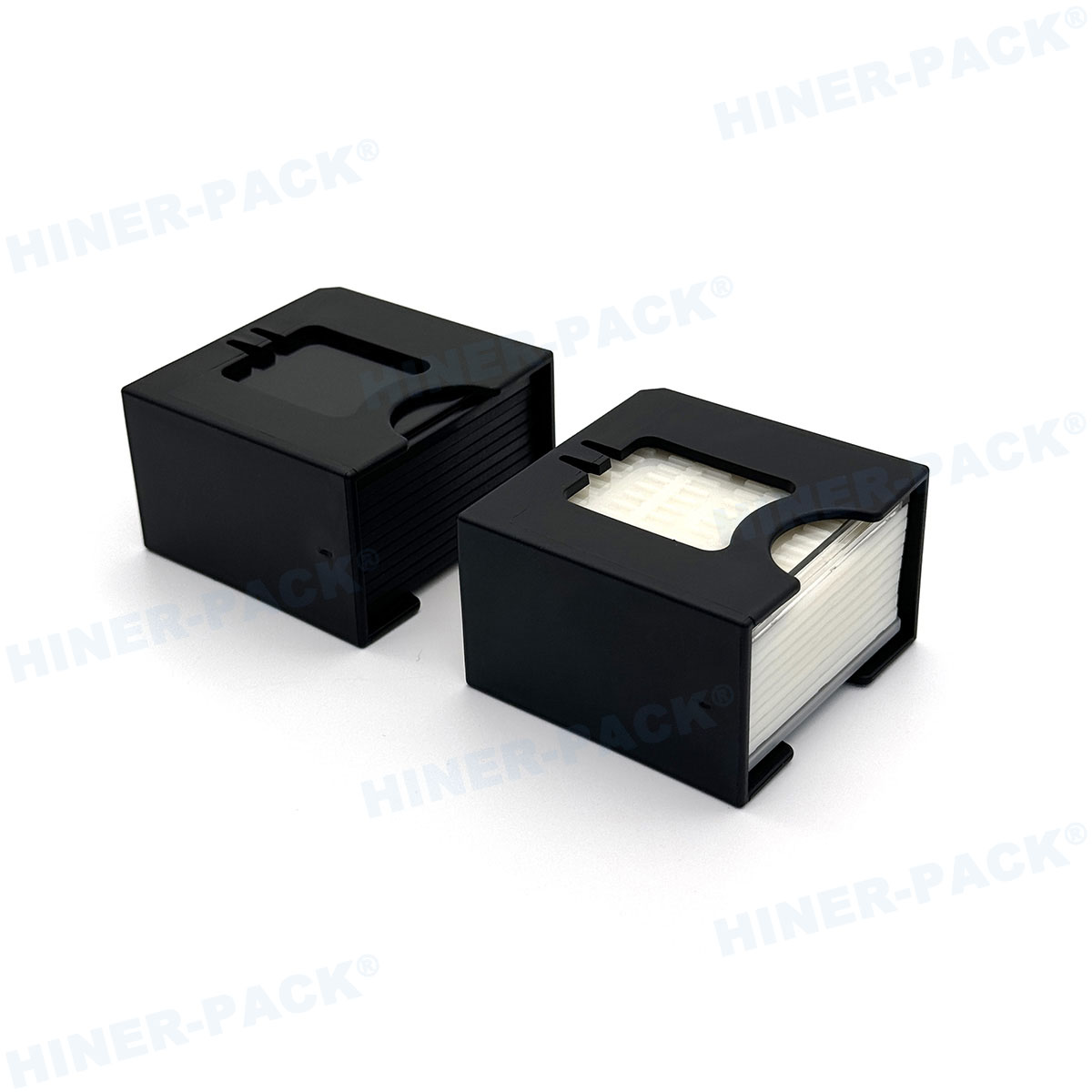

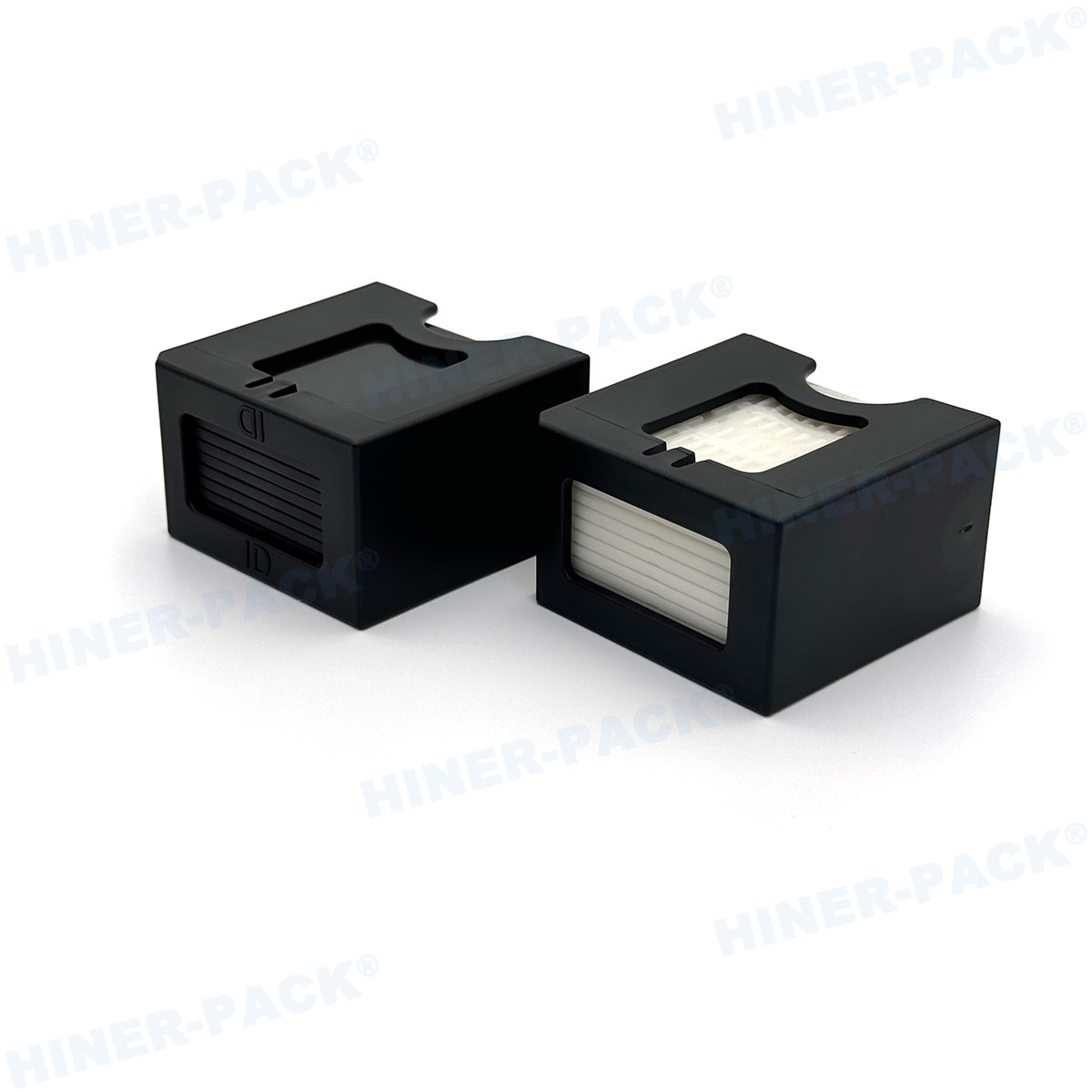

2-inch Waffle Pack Clip HN22113 is a box design with springs for maximum wrap-around stacked trays and covers, and has the highest capacity of any conventional clip. The height of the clip/clamp can be customised to fit chip trays of different thicknesses.

Reference Materials

Hiner-pack® 2-inch Waffle Pack & Chip Tray Catalog.pdf

976 KB

Download

Application

Protects die and substrates such as thin film capacitors, shims, RF switches, MMICs, pedestals, etc. from damage when shipped in industry standard waffle pack chip trays.

Specifications

Part Number	Tray Size & Function	Style	Color	Capacity	Material	Outline Size
HN2097	2" Clip/Clamp	1 Piece Clip	Black	2	Antistatic-PP	55.2×51.5×10.6mm
HN21110	2" Clip/Clamp	1 Piece Clip	Black	2	PP	55×50.61×11mm
HN1923	2" Clip/Clamp	2 Pieces Clip	Black	2	HIPS	55.3×37.3×10.5mm
HN22113	2" Clip/Clamp	Spring Bo×	Black	11	PP	56.12×56×34.98mm
HN1616	2" Cover/Lip	Reverse side with grid-like bumps	Black	N/A	Conductive ABS	50.7×50.7×3.5mm
HN1950	2" Cover/Lip	Reverse side is smooth	Transparent	N/A	Transparent PC	50.7×50.7×3.5mm
