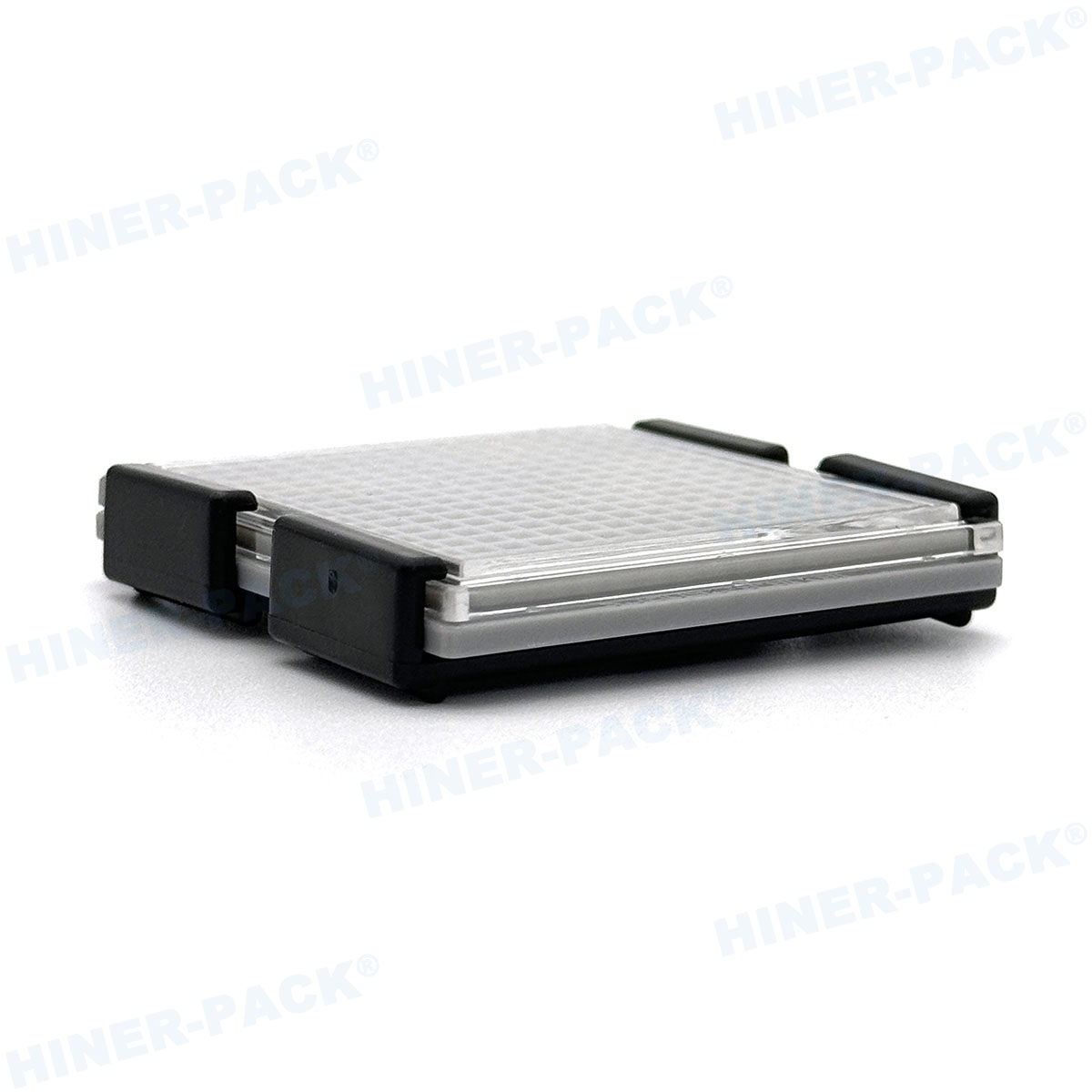

Waffle Pack/Chip Tray Clip is an accessory that locks the tray and cover together by applying uniform compression along the tray edges. This prevents die movement, offsets lid or tray warpage, and ensures stack stability during handling, shipping, or automated processing.

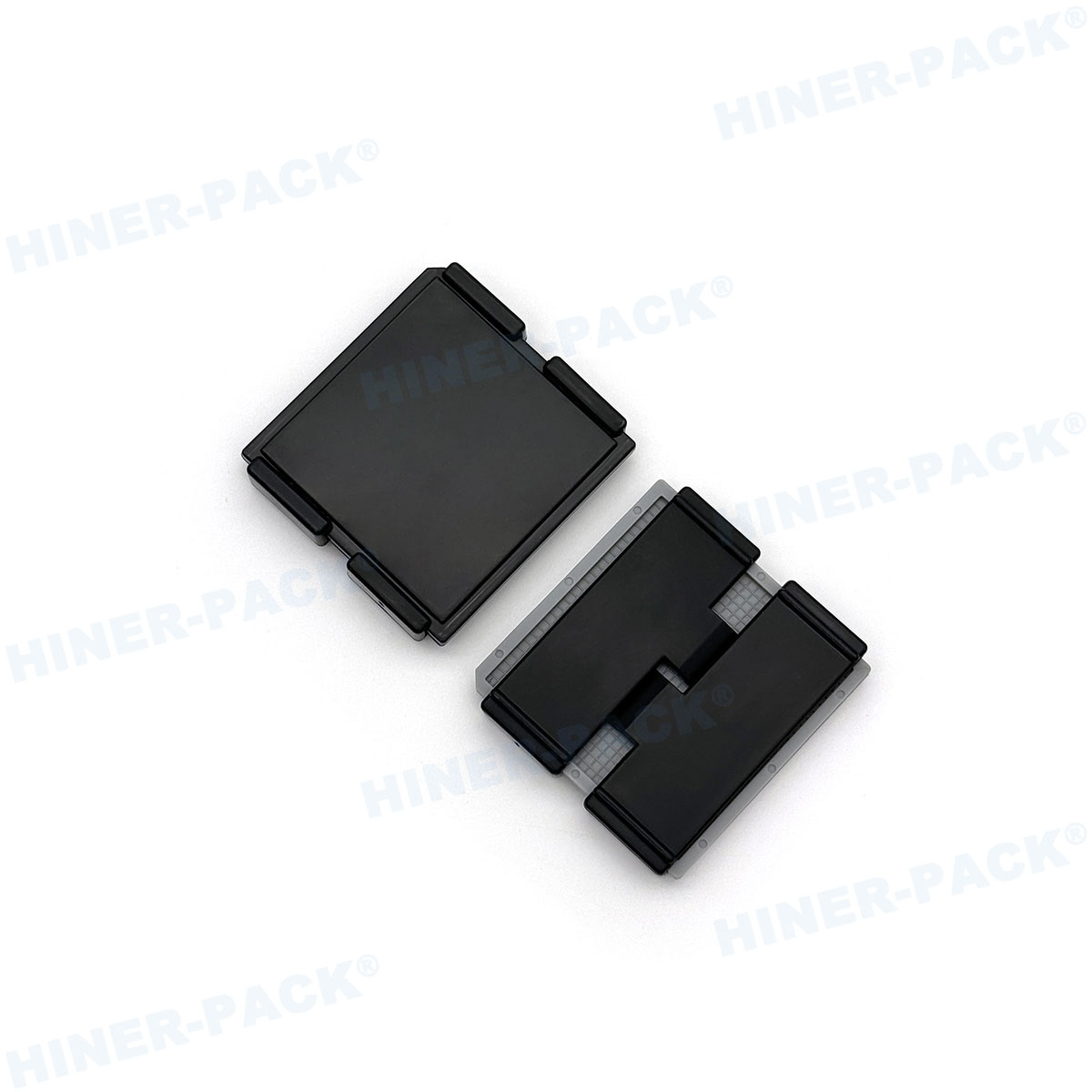

2-inch Waffle Pack Clip HN1923 is a two-piece clip/clamp that securely holds the tray and cover in a combined form. The height of the clip/clamp can be customised to fit chip trays of different thicknesses.
| Part Number | Tray Size & Function | Style | Color | Capacity | Material | Outline Size |
|---|---|---|---|---|---|---|
| HN2097 | 2" Clip/Clamp | 1 Piece Clip | Black | 2 | Antistatic-PP | 55.2×51.5×10.6mm |
| HN21110 | 2" Clip/Clamp | 1 Piece Clip | Black | 2 | PP | 55×50.61×11mm |
| HN1923 | 2" Clip/Clamp | 2 Pieces Clip | Black | 2 | HIPS | 55.3×37.3×10.5mm |
| HN22113 | 2" Clip/Clamp | Spring Bo× | Black | 11 | PP | 56.12×56×34.98mm |
| HN1616 | 2" Cover/Lip | Reverse side with grid-like bumps | Black | N/A | Conductive ABS | 50.7×50.7×3.5mm |
| HN1950 | 2" Cover/Lip | Reverse side is smooth | Transparent | N/A | Transparent PC | 50.7×50.7×3.5mm |
