Optimized for robotic wafer loading and unloading in clean environments

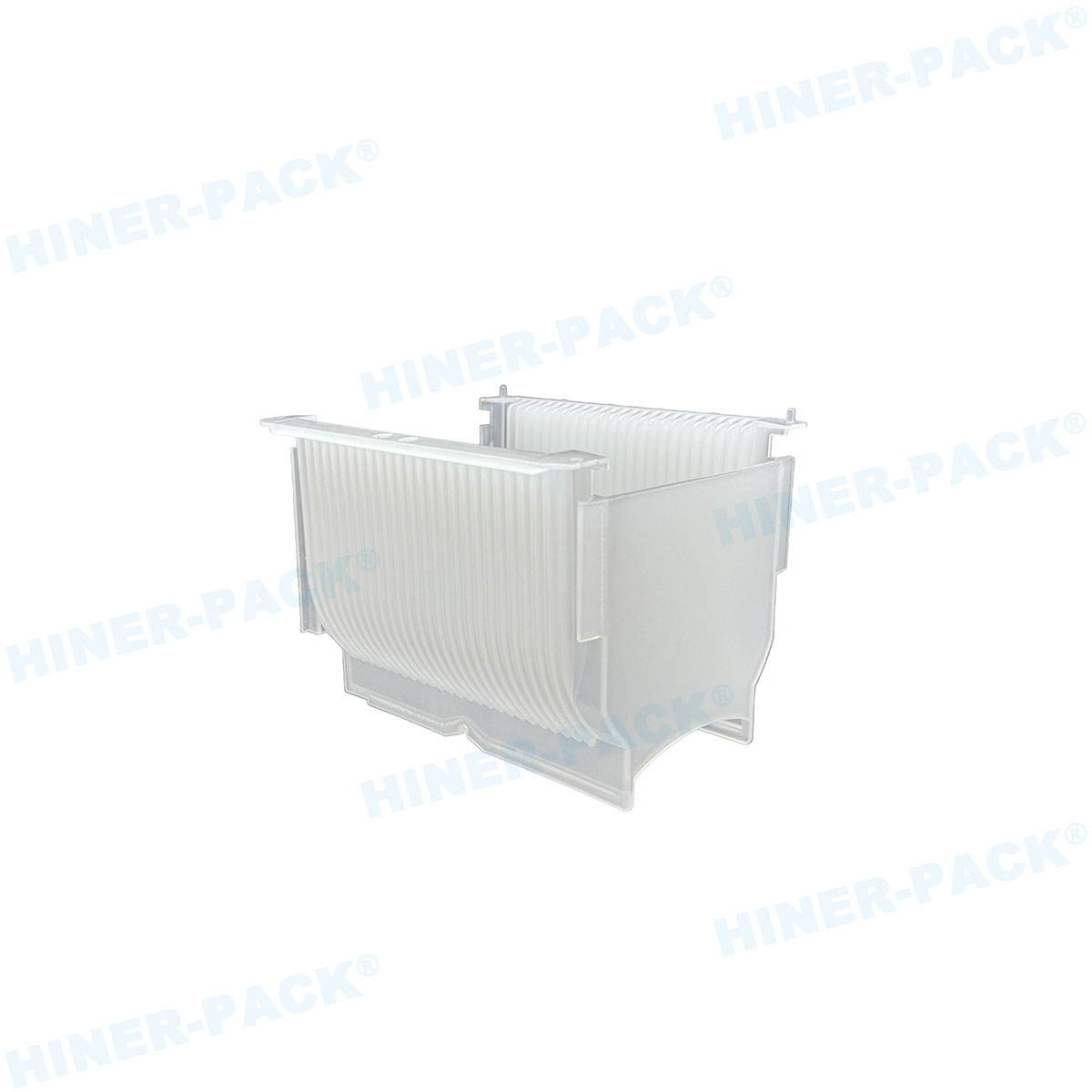

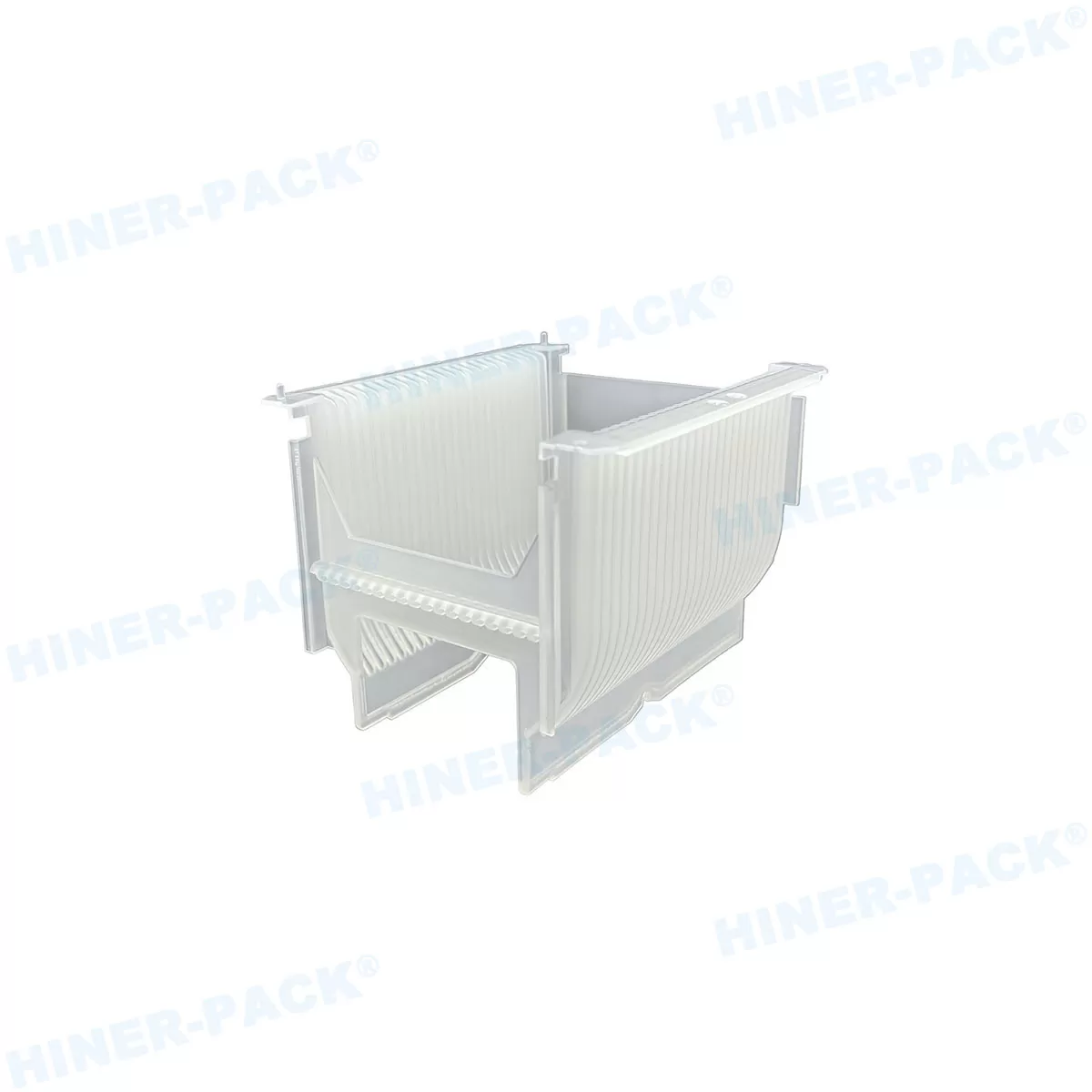

Wafer cassettes, also known as wafer boats, are used for safe wafer handling during semiconductor manufacturing. Suitable for in-fab transfers and short-term storage, they are molded from polypropylene for durability, with options in natural or conductive materials. Designed to fit wafers of a single size, these cassettes enable precise automation alignment, prevent contamination, and improve process efficiency. There are many different materials for wafer boats to choose from, perfect for applications from general wafer handling to thermal processing, depending on the different properties of the application materials. They can be combined with wafer storage boxes to ensure complete wafer protection during transport and storage.
• Holding and organizing wafers during cleaning, drying, and inspection
• Transport of wafers between cleanroom processes
• Storage of wafers in standard fab equipment racks
• Cost-effective solution for general wafer handling needs
| BASIC INFORMATION | ||
|---|---|---|
| Part Number | Collocation Reference | Wafer Size |
| MCS-4/25-NP | -- | 4"/100 mm |
| Metarial | Maximum Capacity | Color |
| PP | 25 | Transparent |
| Delivery Time | Usually 2-3 weeks, depending on order quantity |
* For more sizes or customization needs, please contact our team. We offer one-stop packaging solutions for your products.
| TECHNICAL DATA | ||
|---|---|---|
| PROPERTY | TEST METHOD | RATED VALUES |
| Density | ISO 1183 | 0.9 g/cm³ |
| Melt Index | ISO 1133 | 15 g/10min |
| Melting Point | DSC | 146°C |
| Distortion Temperature | ISO 75 | 95°C |
| Vicat softening temperature | ISO 306 | 125°C |
| Tensile Strength at Yield | ISO 527 | 280 kg/m² |
| Tensile Elongation at Break | ISO 527 | 300 % |
| Rockwell hardness R scale | ISO 2039 | 98 |
| Tensile Strain at Break | ISO 527-2 (50mm/min) | 10 % |
| Flexural Modulus | ISO 178 | 10500 kg/m² |
| Flow Shrinkage | FPC Method | 1.3~1.7 % |
| LZOD Impact Strength | ISO 180/23°C ISO 180/-20°C | 6 kg.cm/cm --- notch |
* The above data are typical laboratory values and are only used as a reference, not as a guarantee for quality indicators or any other use.
