Reliable wafer shipping solution ensuring protection from contamination and mechanical damage

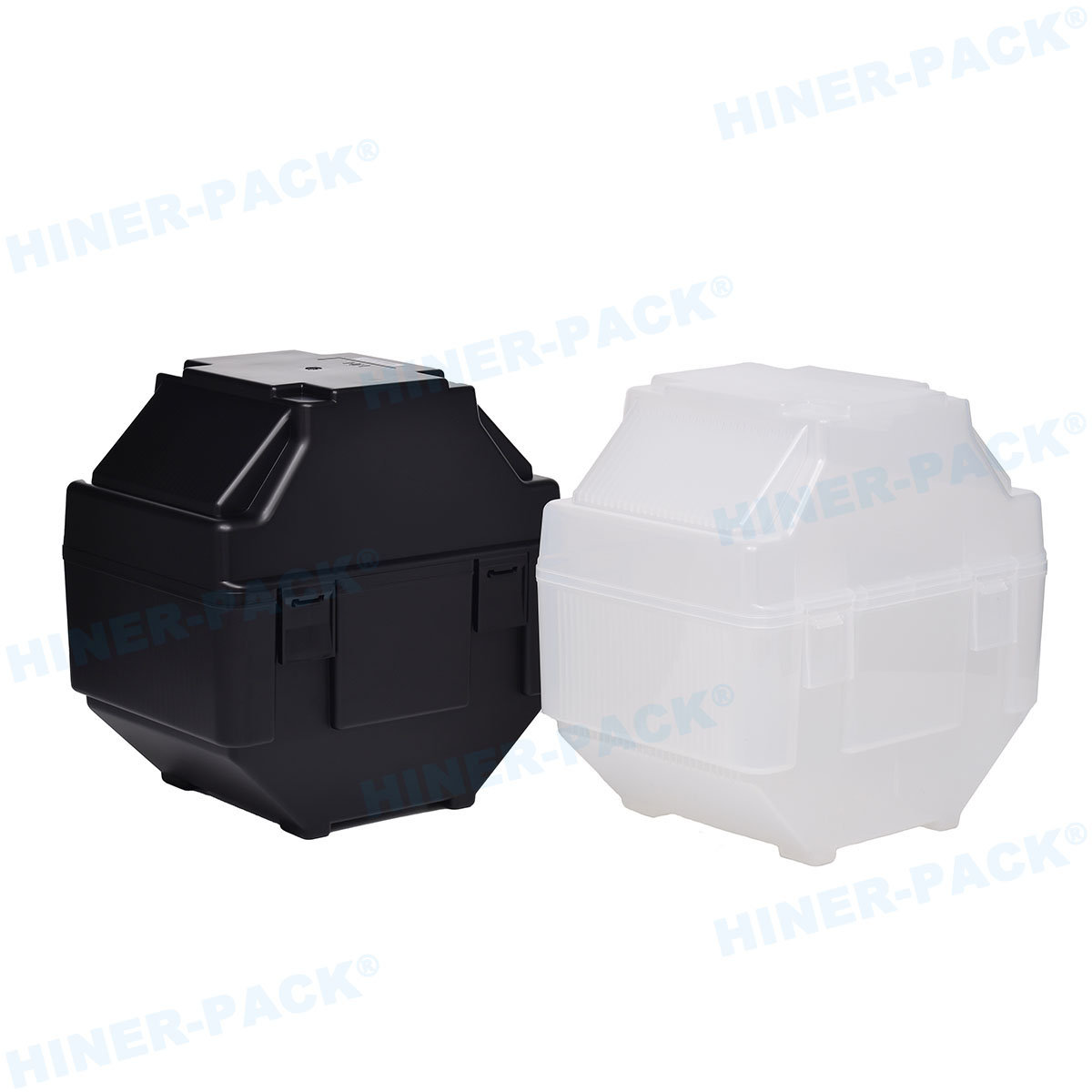

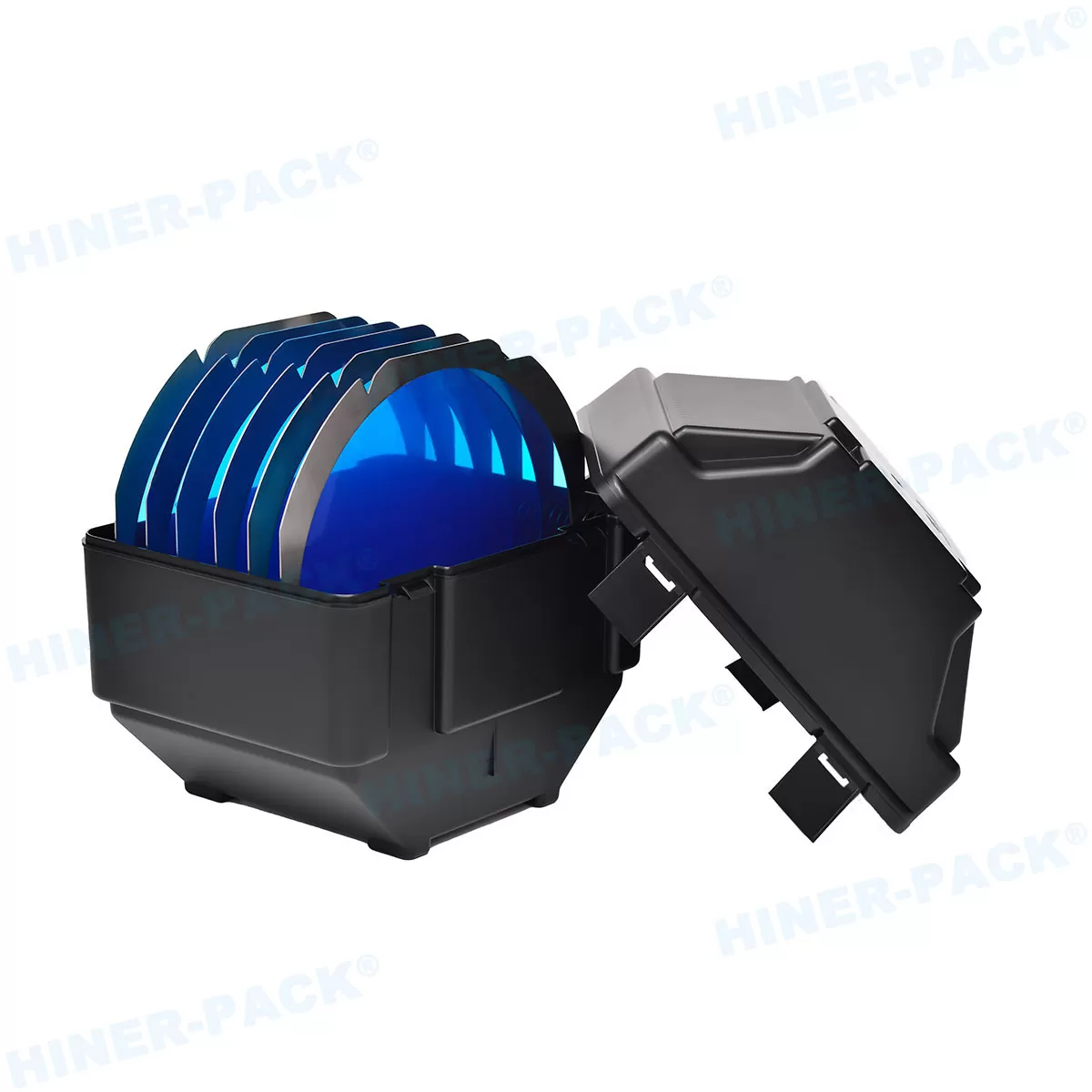

Purpose-built for wafers mounted on dicing, flex, or film frames, this vertical wafer shipper secures frames in a stable standing orientation, reducing movement and safeguarding wafer integrity. Molded slots align precisely with frame edges, preventing direct wafer contact and eliminating slippage or edge chipping. The top cover features a spring-loaded design to lock frames firmly in place, preventing breakage during shipping. Made from high-purity, static dissipative polymer materials, it resists ionic contamination and outgassing, and prevents static charge buildup. Cleaned and sealed in a Class 100 cleanroom environment, this wafer transport container ensures particle-free storage—ideal for semiconductor manufacturers demanding consistent protection and cleanliness.
• Handling and storage of wafers mounted on flex, film, or dicing frames
• Safe vertical orientation to facilitate easy loading and unloading
• Minimizing mechanical stress during the transportation of fragile wafers
• Protection from environmental contamination in cleanroom logistics
| BASIC INFORMATION | ||
|---|---|---|
| Part Number | Collocation Reference | Wafer Size |
| FVWS-8/25-BL | Bottom+Frame+Top | 8"/200 mm |
| Metarial | Maximum Capacity | Color |
| Conductive PP | 25 | Black |
| Delivery Time | Usually 2-3 weeks, depending on order quantity |
* For more sizes or customization needs, please contact our team. We offer one-stop packaging solutions for your products.
| TECHNICAL DATA | ||
|---|---|---|
| PROPERTY | TEST METHOD | RATED VALUES |
| Density | ISO 1183-1 (23°C) | 1.0 g/cm³ |
| Melt Index (350°C/5kg) | ASTM D–1238 | 15.0 g/10min |
| Shrinkage Percentage | ISO 2577 | 1.2~1.6 % |
| Tensile Strength | ISO 527-2 (50mm/min) | 25 MPa |
| Tensile Strain at Break | ISO 527-2 (50mm/min) | 10 % |
| Flexural Strength (Fracture) | ISO 178 (2mm/min) | 27 MPa |
| Flexural Modulus | ISO 178 (2mm/min) | 1150 MPa |
| LZOD Notch Impact Strength (3.2mm) | ISO 180 (23°C) | 30 kJ/m² |
| Surface Resistivity | ASTM D–257 | 1.0×10⁴~1.0×10⁹ Ω/sq |
| Flame Retardant Rating | UL 94 | HB Class |
* The above data are typical laboratory values and are only used as a reference, not as a guarantee for quality indicators or any other use.
