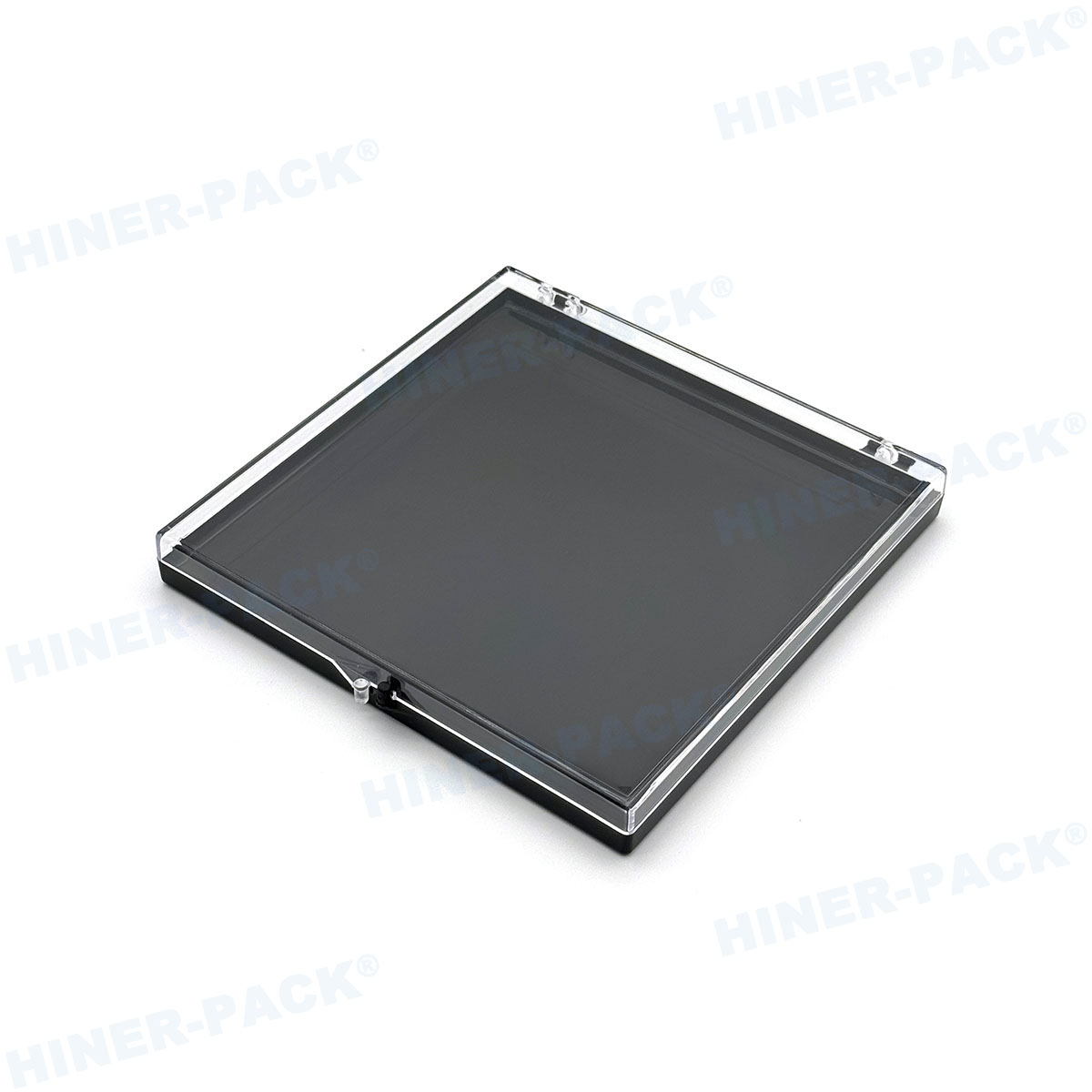

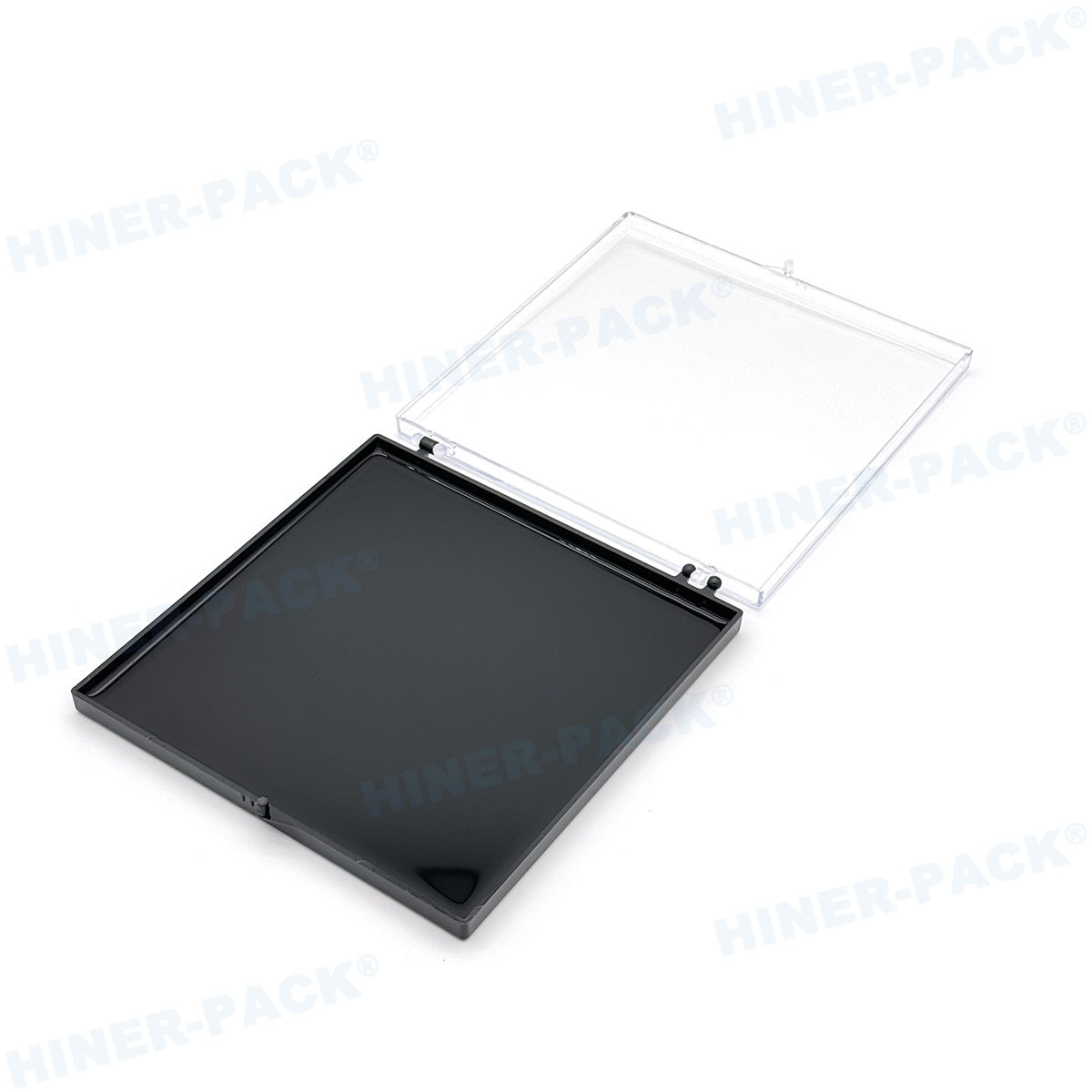

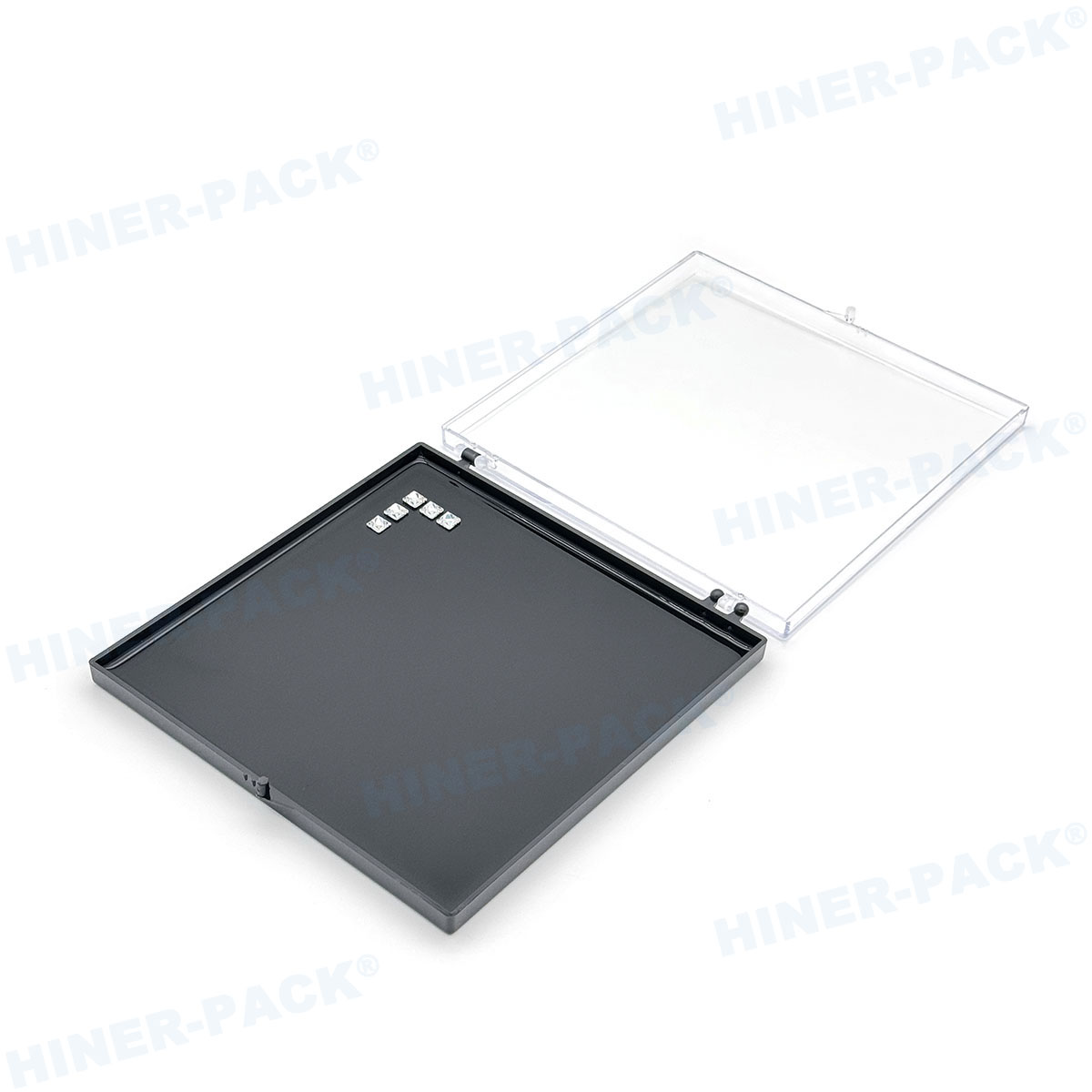

Gel-Box is comprised of a plastic hinged box with Gel applied to the bottom. These versatile “pocketless” carriers immobilize devices during shipping, handling and processing.
Apart from the wide choice of sizes, a variety of hinged boxes with top and bottom material configurations are available. You can choose from materials such as transparent, conductive black, and even transparent antistatic material.
Various grid patterns can be printed on the gel, and company name or logo to be printed on the Gel-Box cover can be customised upon request.
Gel-Box are ideal for：
Devices where direct contact with the top surface or edges should be avoided.
Devices that are handled with tweezers or by hand.
Multiple device sizes (no pockets) in same Gel-Box.
Handling small components or large assembled modules.
| Gel Box | |||
|---|---|---|---|
| Part Number | Overall Dimensions | Inner Dimensions | Grid Size |
| HN#5510 | 55×55×10mm | 51×51×6.4mm | 2.5×2.5mm |
| HN#7515 | 75×55×15mm | 71×51×11mm | 5.1×3mm |
| HN#8512 | 85×85×12mm | 81×81×7mm | 5.6×5.6mm |
| HN#12012 | 120×120×12mm | 116×116×8.5mm | 4.5×4.5mm |
| HN#15020 | 150×150×20mm | 146×146×16mm | Blank/Customizable |
| HN19101A | 66.5×91.9×15.7mm | 63.5×88.9×12.7mm | Blank/Customizable |
| HN19101B | 155.4×104.6×15.7mm | 152.4×101.6×12.7mm | 10.49×6.5mm |
| Remark | |||
| Viscidity： Low, medium, and high optional Color： Top&Botom: Transparent | Top: Transparent, Bottom: Black | Top&Botom: Black(ESD) |
