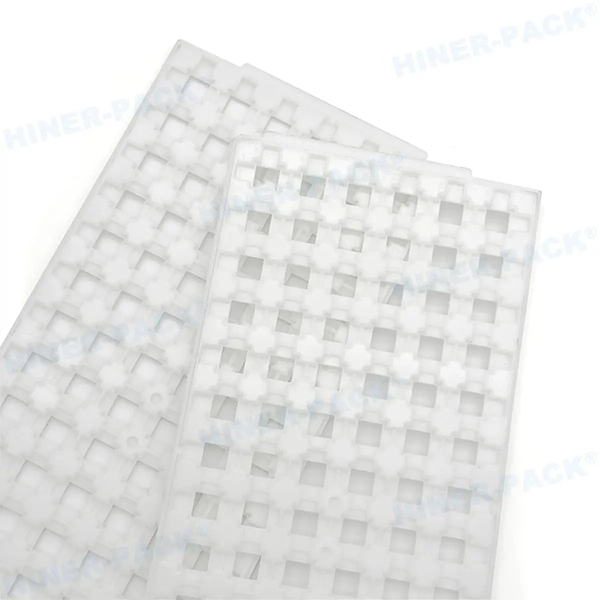

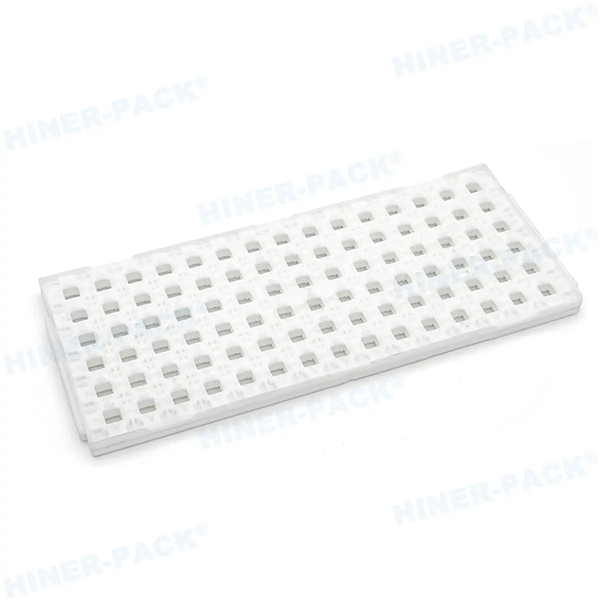

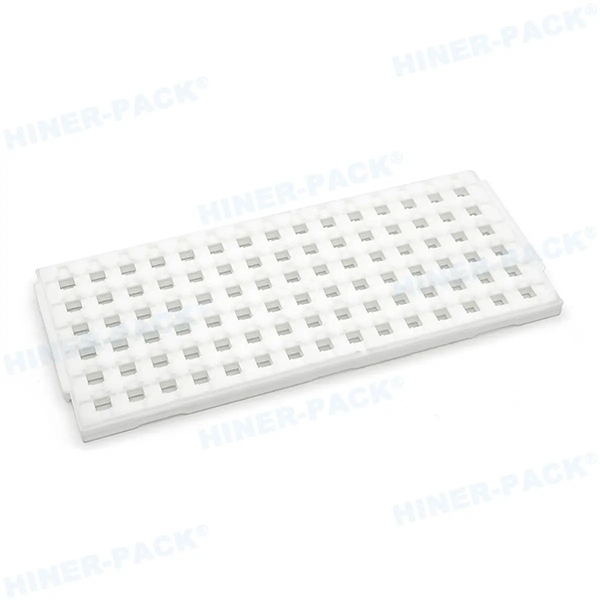

JEDEC Tray 3D Sample

- Accurate dimensional representation
- Cost-effective prototyping solution
- Supports design modifications before tooling
- Enhances communication between design and manufacturing teams
Tags：
3D Samples JEDEC Tray IC Packaging Tray JEDEC Matrix Tray

Description

JEDEC tray 3D samples are prototype models created to visualize and verify tray designs before mass production. They allow engineers to evaluate dimensions, pocket layouts, and compatibility with components and automated handling systems.

Reference Materials

  • Hiner-pack® JEDEC Tray Catalogue.pdf

    838 kB
    Download

Application

• Pre-production design verification

• Fit and function testing with devices

• Demonstrations for customer approval and R&D purposes

Specifications
