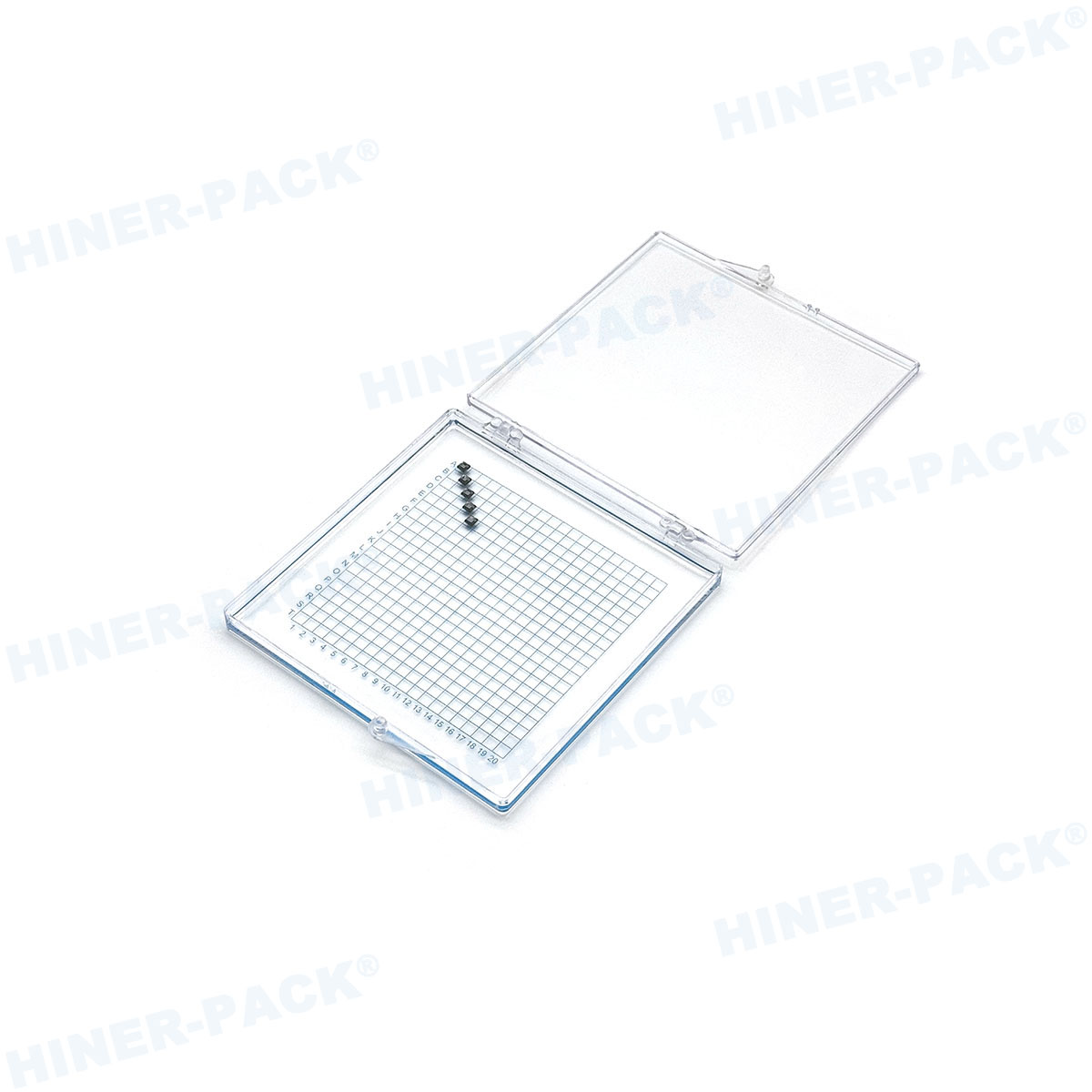

These hinged plastic Gel-Pak boxes are ideal for storage or safe transport of a wide range of specimens and delicate components.
The unique highly cross-linked Gel polymer coating applied to the base of the box holds specimens firmly in place and allow easy removal without damage to the gel or contamination of the specimen surface. The Gel material is strong in both shear and vertical directions, but weak in the peel direction, which allows parts to be easily unloaded from the Gel surface. The Gel is an extremely durable and versatile material that maintains its properties between -50°C to 230°C.
The degree of holding force of the Gel is depending on the tackiness of the Gel material, three retention levels and different sizes are available to accommodate variations in component size, weight and surface roughness.
Gel-Box are ideal for：
Devices where direct contact with the top surface or edges should be avoided.
Devices that are handled with tweezers or by hand.
Multiple device sizes (no pockets) in same Gel-Box.
Handling small components or large assembled modules.
| Gel Box | |||
|---|---|---|---|
| Part Number | Overall Dimensions | Inner Dimensions | Grid Size |
| HN#5510 | 55×55×10mm | 51×51×6.4mm | 2.5×2.5mm |
| HN#7515 | 75×55×15mm | 71×51×11mm | 5.1×3mm |
| HN#8512 | 85×85×12mm | 81×81×7mm | 5.6×5.6mm |
| HN#12012 | 120×120×12mm | 116×116×8.5mm | 4.5×4.5mm |
| HN#15020 | 150×150×20mm | 146×146×16mm | Blank/Customizable |
| HN19101A | 66.5×91.9×15.7mm | 63.5×88.9×12.7mm | Blank/Customizable |
| HN19101B | 155.4×104.6×15.7mm | 152.4×101.6×12.7mm | 10.49×6.5mm |
| Remark | |||

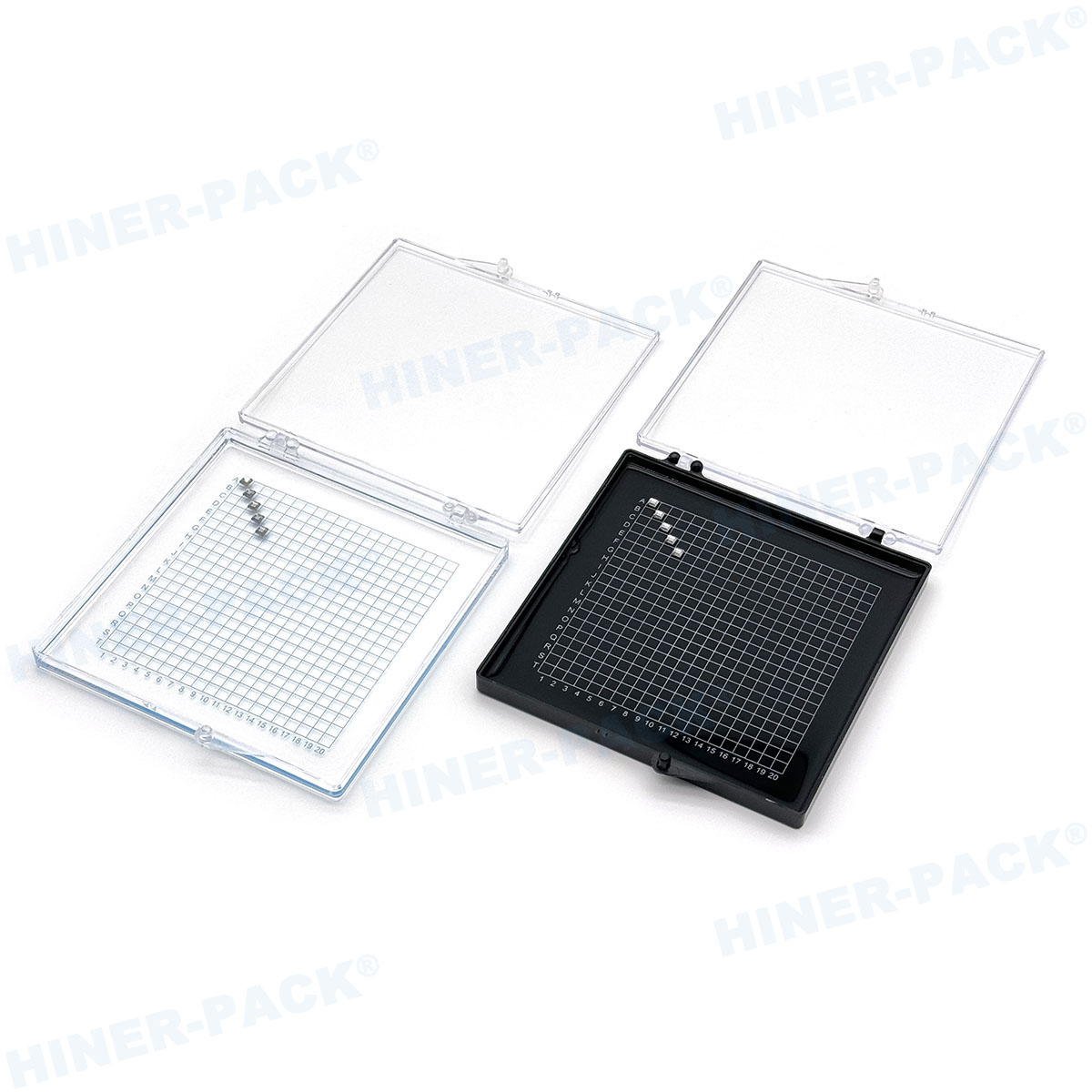

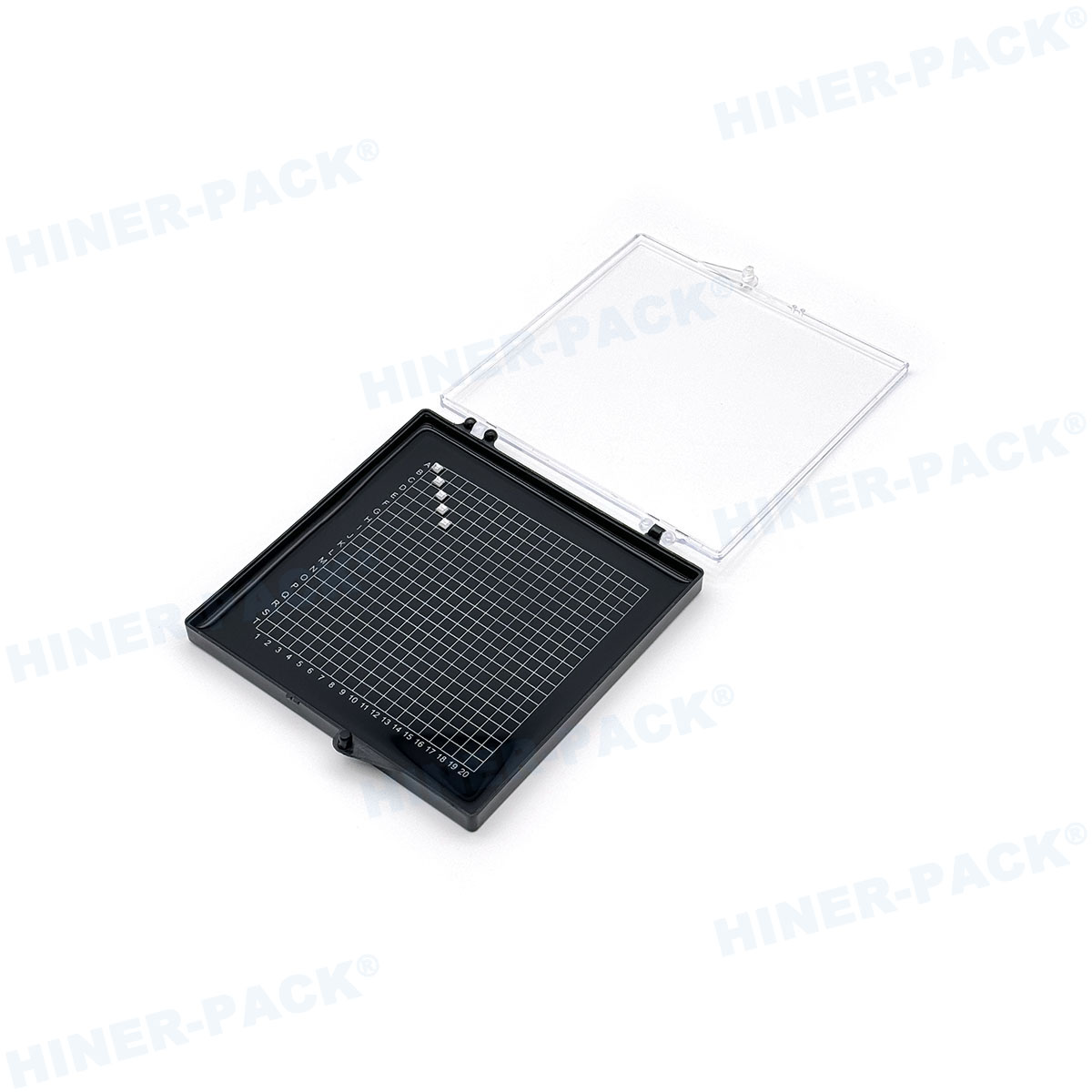

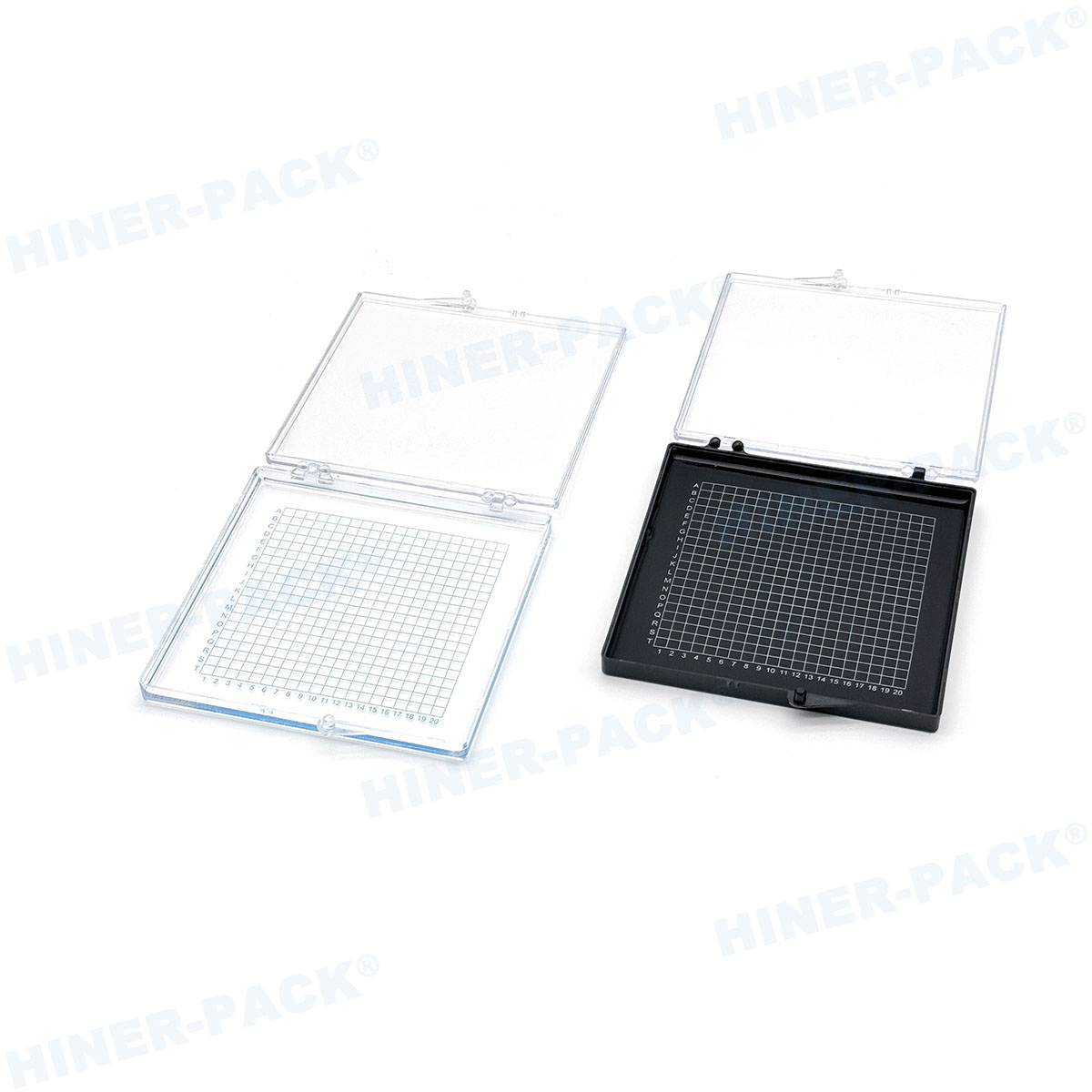

| Viscidity： Low, medium, and high optional Color： Top&Botom: Transparent | Top: Transparent, Bottom: Black | Top&Botom: Black(ESD) |
