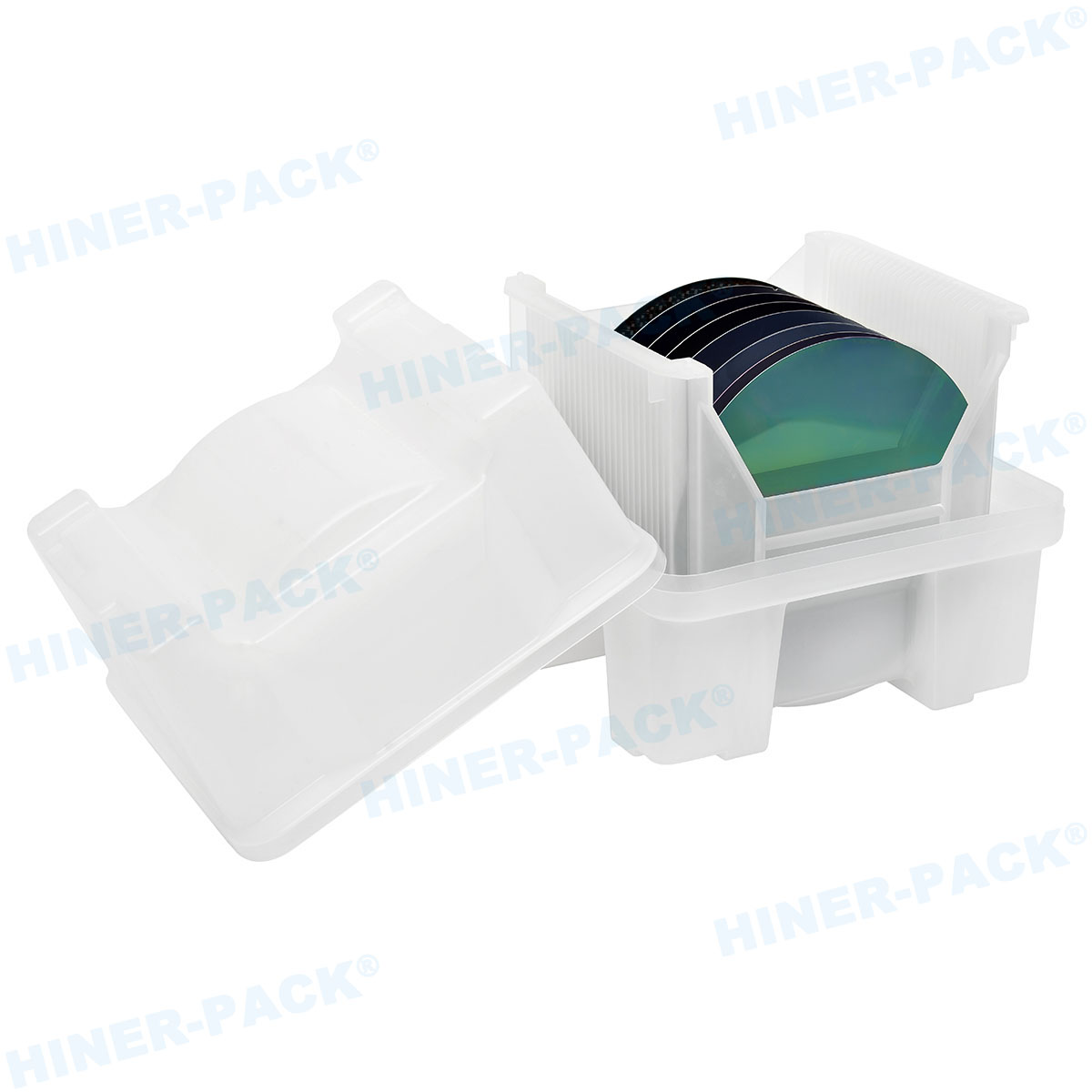

Vertical stacking shipper with cassette, bottom, and top for wafer protection
The vertical wafer shipper features a three-piece assembly (bottom, cassette, top) engineered to hold up to 25 full-thickness wafers. The design of three-in-one shipper maximizes space while minimizing movement within the box, which can prevent the movement inside the slot during transportation, thereby reducing the potential for edge defects of the wafer during transit. Protecting vertically stored wafers during safe transportation while allowing easy access. Support springs or alignment inside the Upper cover keys hold each wafer securely, preventing tilt, vibration, and contact between adjacent wafers, effectively avoiding wafer rotation, preventing wafer breakage. Dimensions conform to industry-standard cassette footprints, allowing plug-and-play integration with existing load ports, transfer robots, and storage racks. Crafted from high-purity polypropylene, it exhibits ultra-low ionics and minimal outgassing, meeting stringent cleanroom requirements.
• Secure vertical stacking and transport of wafers in a cassette
• Storage of ultrathin or sensitive wafers in a controlled environment
• Transfer of wafers between assembly, testing, and packaging lines
• Prevention of particle generation and physical damage during handling
| BASIC INFORMATION | ||
|---|---|---|
| Part Number | Collocation Reference | Wafer Size |
| MVWS-8/25-NP | Bottom+Cassette+Top | 8"/200 mm |
| Metarial | Maximum Capacity | Color |
| Nature PP | 25 | Transparent |
| Delivery Time | Usually 2-3 weeks, depending on order quantity |
* For more sizes or customization needs, please contact our team. We offer one-stop packaging solutions for your products.
| TECHNICAL DATA | ||
|---|---|---|
| PROPERTY | TEST METHOD | RATED VALUES |
| Density | ISO 1183 | 0.9 g/cm³ |
| Melt Index | ISO 1133 | 15 g/10min |
| Melting Point | DSC | 146°C |
| Distortion Temperature | ISO 75 | 95°C |
| Vicat softening temperature | ISO 306 | 125°C |
| Tensile Strength at Yield | ISO 527 | 280 kg/m² |
| Tensile Elongation at Break | ISO 527 | 300 % |
| Rockwell hardness R scale | ISO 2039 | 98 |
| Tensile Strain at Break | ISO 527-2 (50mm/min) | 10 % |
| Flexural Modulus | ISO 178 | 10500 kg/m² |
| Flow Shrinkage | FPC Method | 1.3~1.7 % |
| LZOD Impact Strength | ISO 180/23°C ISO 180/-20°C | 6 kg.cm/cm --- notch |
* The above data are typical laboratory values and are only used as a reference, not as a guarantee for quality indicators or any other use.
