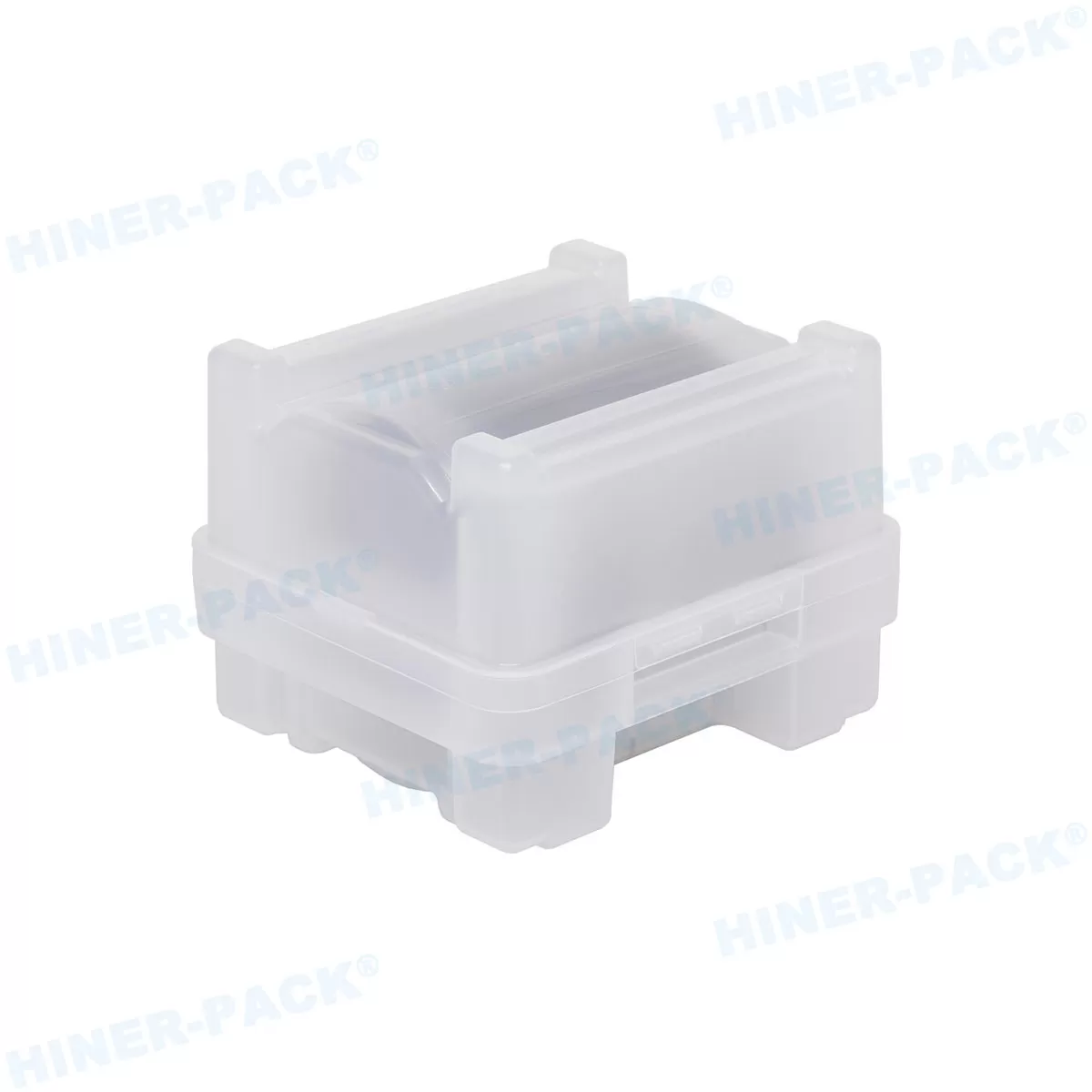

Vertical stacking shipper with cassette, bottom, and top for wafer protection

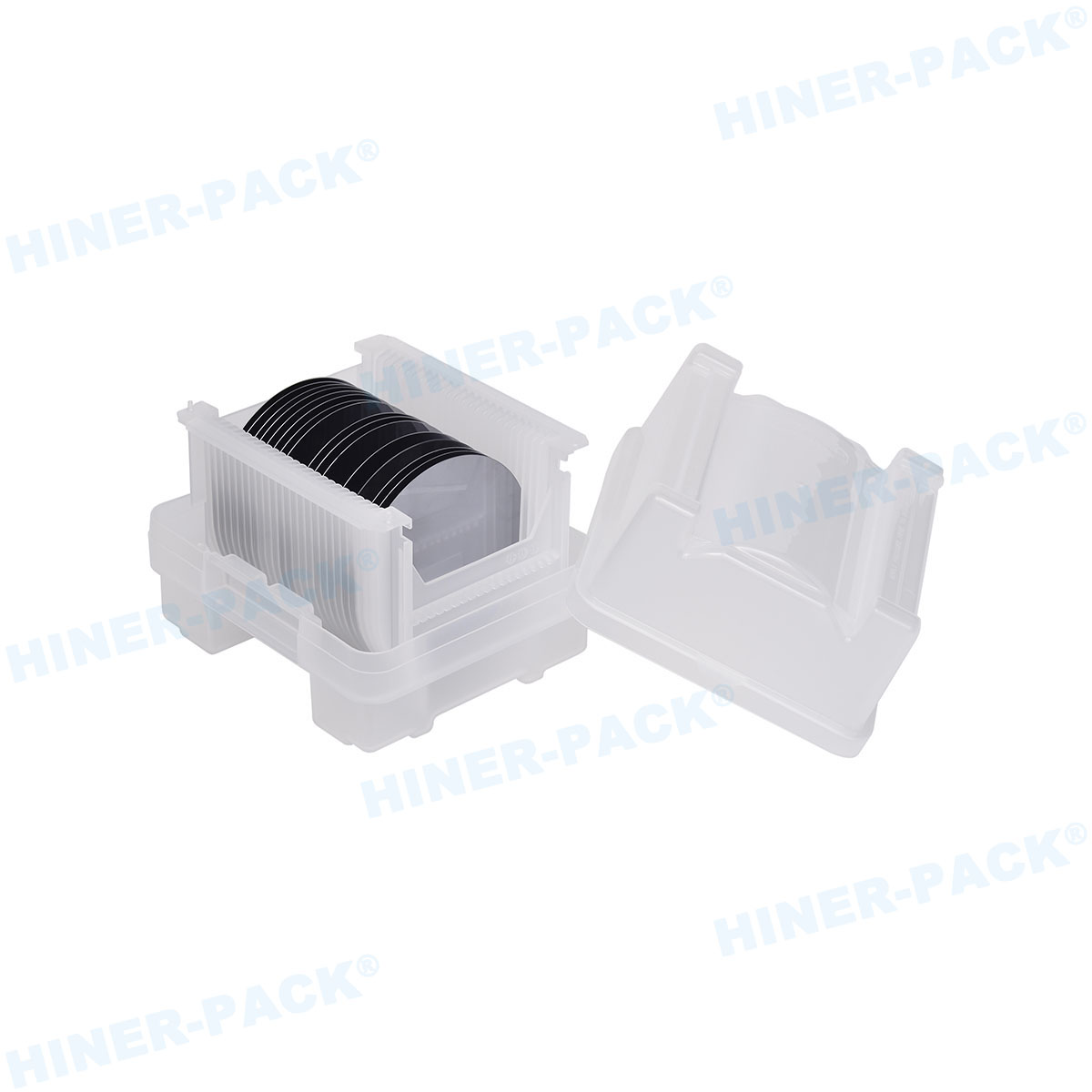

Designed for secure highly sensitive wafer transport, this vertical wafer shipper combines a bottom housing, a precision wafer cassette, and a locking top cover. The three-in-one construction stores up to 25 wafers in a stable vertical position, protecting edges from chipping during shipment. Integrated springs or alignment in the top cover hold wafers in place, preventing vibration, rotation, and misalignment. With its standardized cassette footprint, this wafer shipper works with automated load ports, transfer robots, and semiconductor storage systems. Constructed from ultra-clean polypropylene, it delivers low ionic contamination and minimal outgassing, meeting the strictest cleanroom wafer packaging requirements.
• Secure vertical stacking and transport of wafers in a cassette
• Storage of ultrathin or sensitive wafers in a controlled environment
• Transfer of wafers between assembly, testing, and packaging lines
• Prevention of particle generation and physical damage during handling
| BASIC INFORMATION | ||
|---|---|---|
| Part Number | Collocation Reference | Wafer Size |
| MVWS-4/25-NP | Bottom+Cassette+Top | 4"/100 mm |
| Metarial | Maximum Capacity | Color |
| Nature PP | 25 | Transparent |
| Delivery Time | Usually 2-3 weeks, depending on order quantity |
* For more sizes or customization needs, please contact our team. We offer one-stop packaging solutions for your products.
| TECHNICAL DATA | ||
|---|---|---|
| PROPERTY | TEST METHOD | RATED VALUES |
| Density | ISO 1183 | 0.9 g/cm³ |
| Melt Index | ISO 1133 | 15 g/10min |
| Melting Point | DSC | 146°C |
| Distortion Temperature | ISO 75 | 95°C |
| Vicat softening temperature | ISO 306 | 125°C |
| Tensile Strength at Yield | ISO 527 | 280 kg/m² |
| Tensile Elongation at Break | ISO 527 | 300 % |
| Rockwell hardness R scale | ISO 2039 | 98 |
| Tensile Strain at Break | ISO 527-2 (50mm/min) | 10 % |
| Flexural Modulus | ISO 178 | 10500 kg/m² |
| Flow Shrinkage | FPC Method | 1.3~1.7 % |
| LZOD Impact Strength | ISO 180/23°C ISO 180/-20°C | 6 kg.cm/cm --- notch |
* The above data are typical laboratory values and are only used as a reference, not as a guarantee for quality indicators or any other use.
