Protects wafers from contamination during secure transport and storage

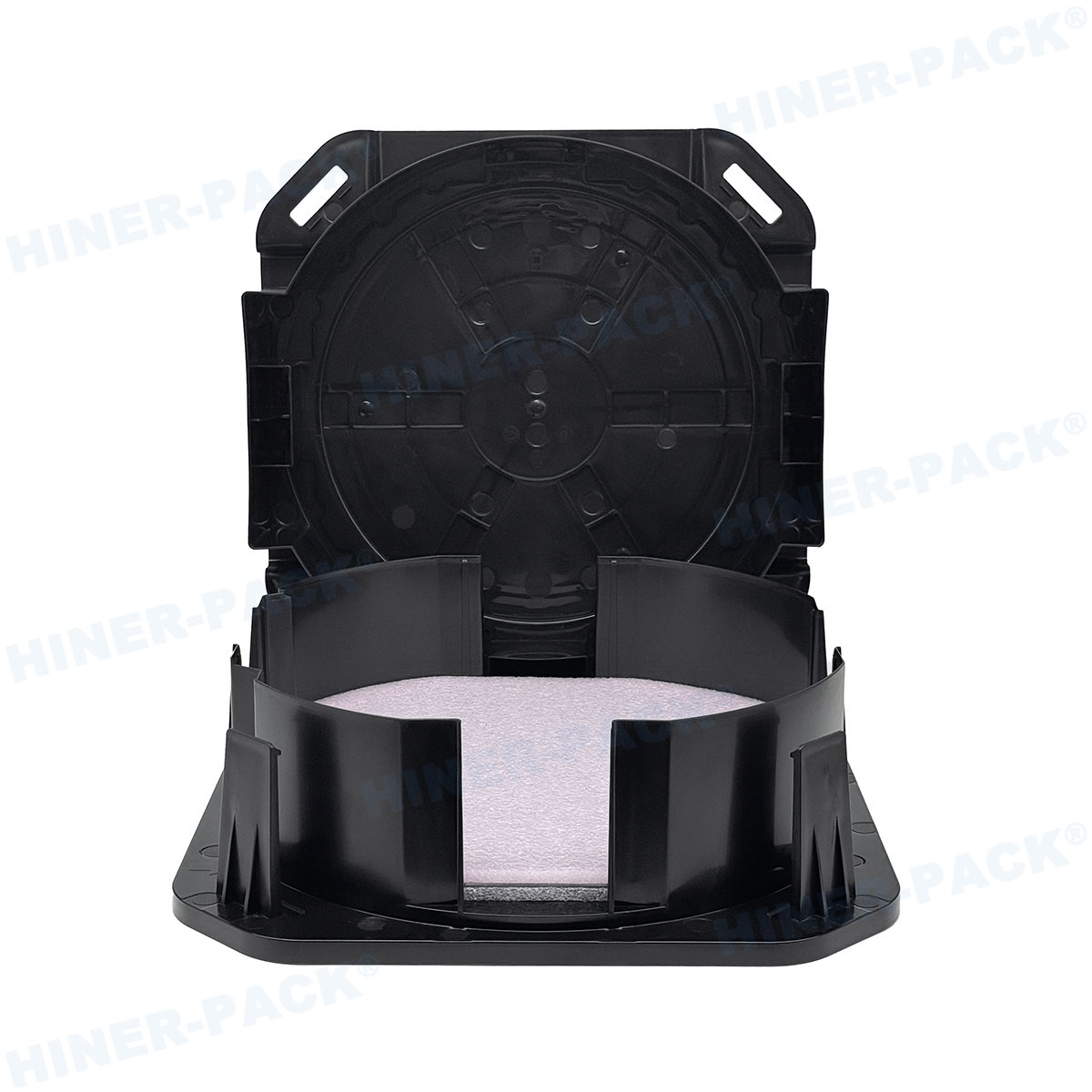

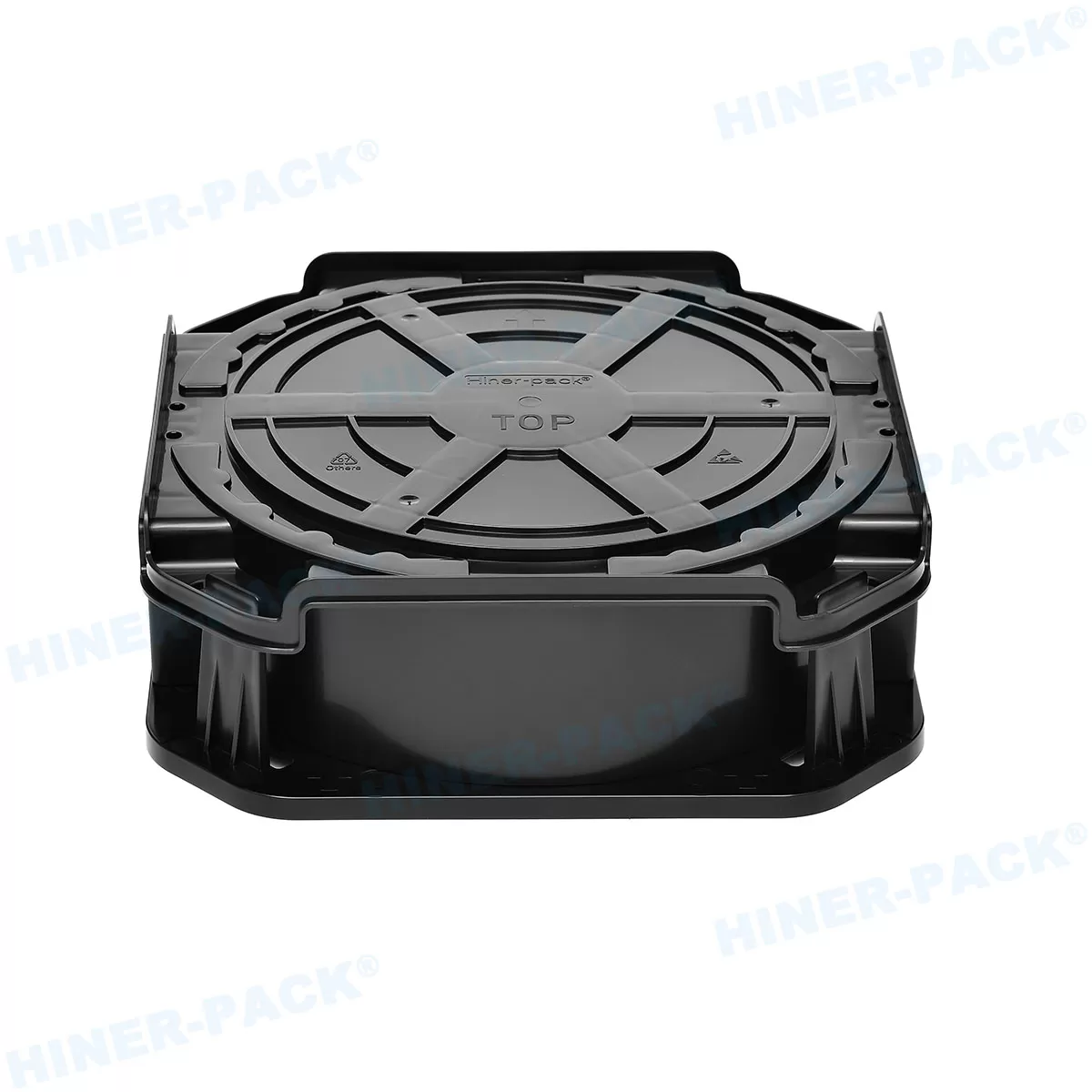

Engineered for secure transport and storage of wafer-attached flex, dicing, or film frame in semiconductor packaging, this shipper delivers critical protection and automation compatibility. Its precision-molded slots immobilize frames, its perimeter support rings and inner contours cradle the metal or plastic frame rather than the wafer surface, preventing wafer slippage and micro-crack damage during handling. Lock catch secure system and inner side impact-resistant space design provide effective protection during wafer transportation. Constructed from anti-static PP, dust-free cleaning and packaging after completion of production, suitable for a 100-class purification workshop, ensures particle-free storage, which is critical in maintaining the integrity of sensitive wafers throughout the shipping process. Flex Frame Wafer Shippers are the ideal solution for semiconductor manufacturers seeking reliable and efficient transportation of multiple wafers mounted on dicing, flex, or film frames.
• Transportation of wafers mounted on film frames after dicing processes
• Storage of ultrathin or sensitive wafers in a controlled environment
• Transfer of wafers between assembly, testing, and packaging lines
• Prevention of particle generation and physical damage during handling
| BASIC INFORMATION | ||
|---|---|---|
| Part Number | Collocation Reference | Wafer Size |

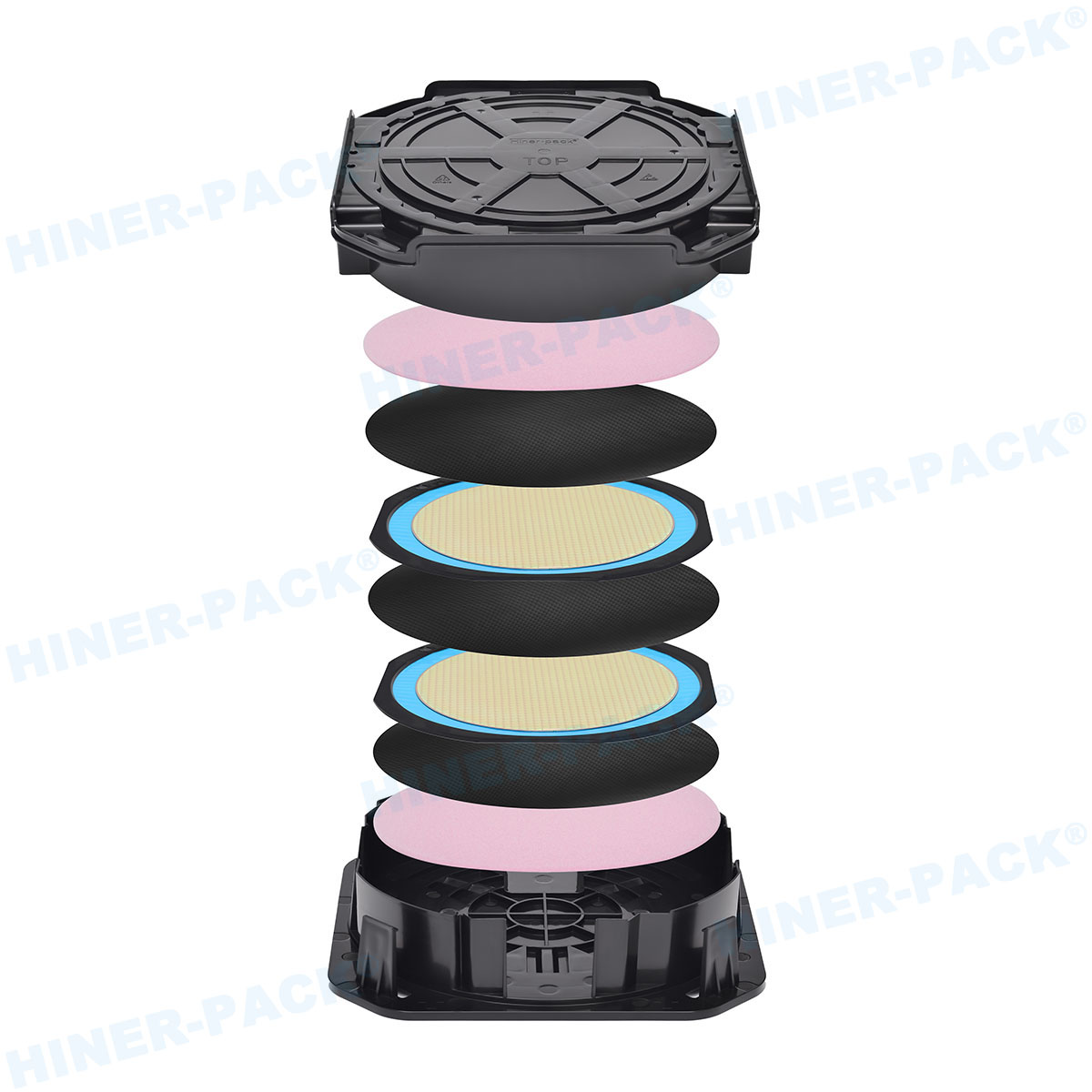

| FHWS-8/25 | Bottom+Foam+Interleaf+Frame+Top | 8"/200 mm |
| Metarial | Maximum Capacity | Color |
| Conductive PP | 25 | Black |
| Delivery Time | Usually 2-3 weeks, depending on order quantity |
* For more sizes or customization needs, please contact our team. We offer one-stop packaging solutions for your products.
| TECHNICAL DATA | ||
|---|---|---|
| PROPERTY | TEST METHOD | RATED VALUES |
| Density | ISO 1183-1 (23°C) | 1.0 g/cm³ |
| Melt Index (350°C/5kg) | ASTM D–1238 | 15.0 g/10min |
| Shrinkage Percentage | ISO 2577 | 1.2~1.6 % |
| Tensile Strength | ISO 527-2 (50mm/min) | 25 MPa |
| Tensile Strain at Break | ISO 527-2 (50mm/min) | 10 % |
| Flexural Strength (Fracture) | ISO 178 (2mm/min) | 27 MPa |
| Flexural Modulus | ISO 178 (2mm/min) | 1150 MPa |
| LZOD Notch Impact Strength (3.2mm) | ISO 180 (23°C) | 30 kJ/m² |
| Surface Resistivity | ASTM D–257 | 1.0×10⁴~1.0×10⁹ Ω/sq |
| Flame Retardant Rating | UL 94 | HB Class |
* The above data are typical laboratory values and are only used as a reference, not as a guarantee for quality indicators or any other use.
