Provides contamination-free protection for delicate wafers during shipping and storage

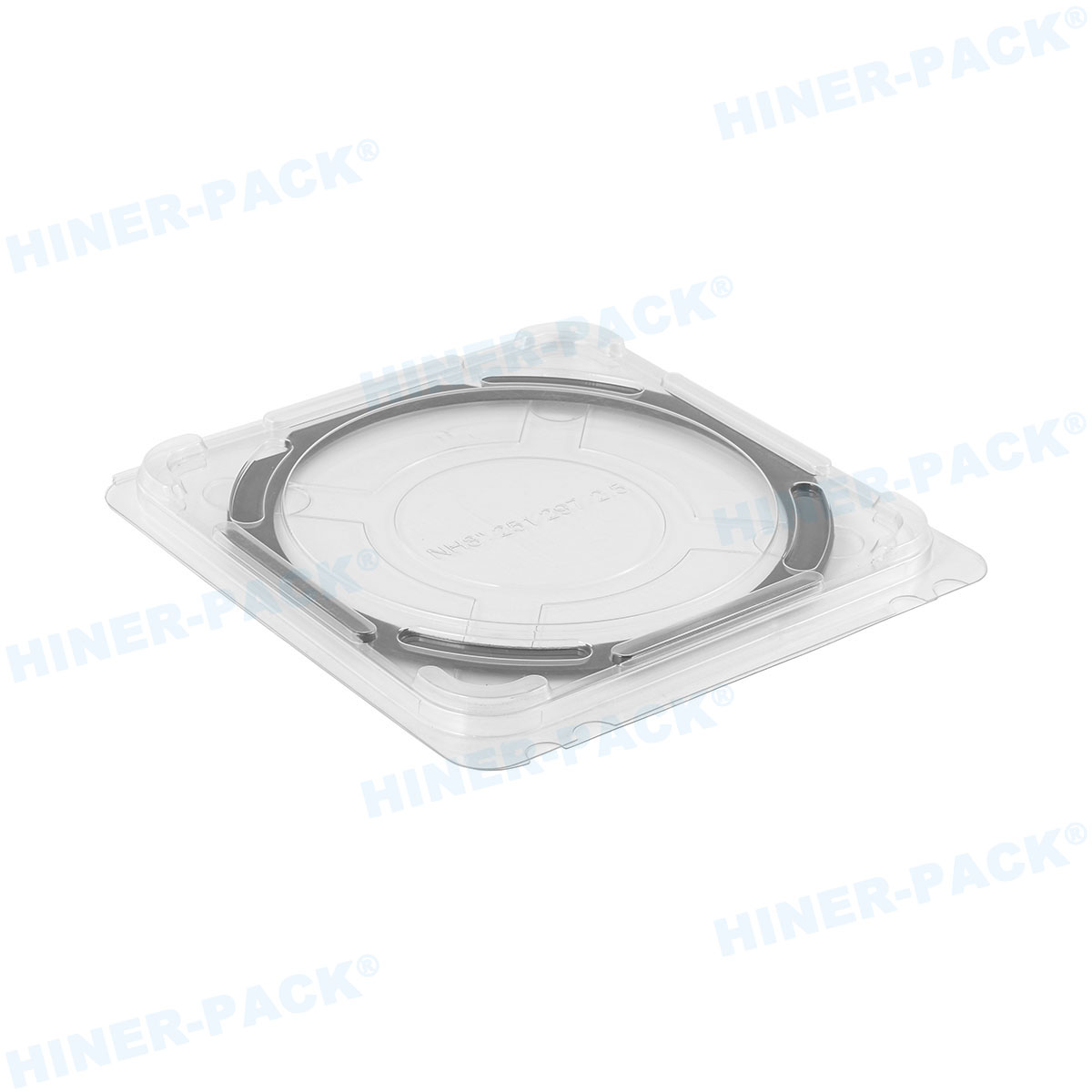

The vacuum-formed flex frame single wafer shipper offers a lightweight, durable, and secure solution for transporting and storing wafers mounted on flex, dicing, or film frames. Designed to safeguard the frame and avoid any contact with the wafer surface, this clamshell-style container ensures maximum protection during semiconductor shipping. Available in both black and transparent materials, it provides ESD-safe performance to prevent electrostatic damage while the clear option allows for visual inspection without opening, reducing contamination risk. Ideal for cleanroom wafer handling, these carriers deliver reliability, safety, and inspection convenience in one design.
• Safe transport of single wafers on film/flex/dicing frames
• Secure storage and transportation for delicate semiconductor wafers
• Use in cleanroom environments for wafer handling
• Eco-friendly and cost-effective wafer shipping option
| BASIC INFORMATION | ||
|---|---|---|
| Part Number | Collocation Reference | Wafer Size |
| SVFWS-8-NP | Wafer Shipper+Frame | 8"/200 mm |
| Metarial | Maximum Capacity | Color |
| PET | 1 | Transparent |
| Delivery Time | Usually 2-3 weeks, depending on order quantity |
* For more sizes or customization needs, please contact our team. We offer one-stop packaging solutions for your products.
| TECHNICAL DATA | ||
|---|---|---|
| PROPERTY | RATED VALUES | UNIT |
| Thickness | 0.01-1.00 (+0.01) | mm |
| Width | 510-780 (+1.0) | mm |
| Density | 1.33 | g/cm³ |
| Strength | >60 | MPa |
| Percentage of Breaking Elongation | >200 | % |
| Light Transmittance | >92 | % |
| Glossiness | 100 | % |
| Point Defects | 1.2 m< 1 | -- |
| Bubble | Without | -- |
| Specific Viscosity | 0.800+0.020 | iv/g |
| Flame Spot | >243+3 | °C |
| Terminal Acid Group | <30 | mol. |
| Color Value | L>80B<1.0 | ---- |
| Crystallinity | 50~60 | % |
| Diethylene Glycol | <1.6 | % |
| Acetaldehyde | <2.0 | % |
| Moisture | <0.4 | % |
| Ash | <0.02 | % |
| Antistatic Agent | <2.0 | % |
* The above data are typical laboratory values and are only used as a reference, not as a guarantee for quality indicators or any other use.
