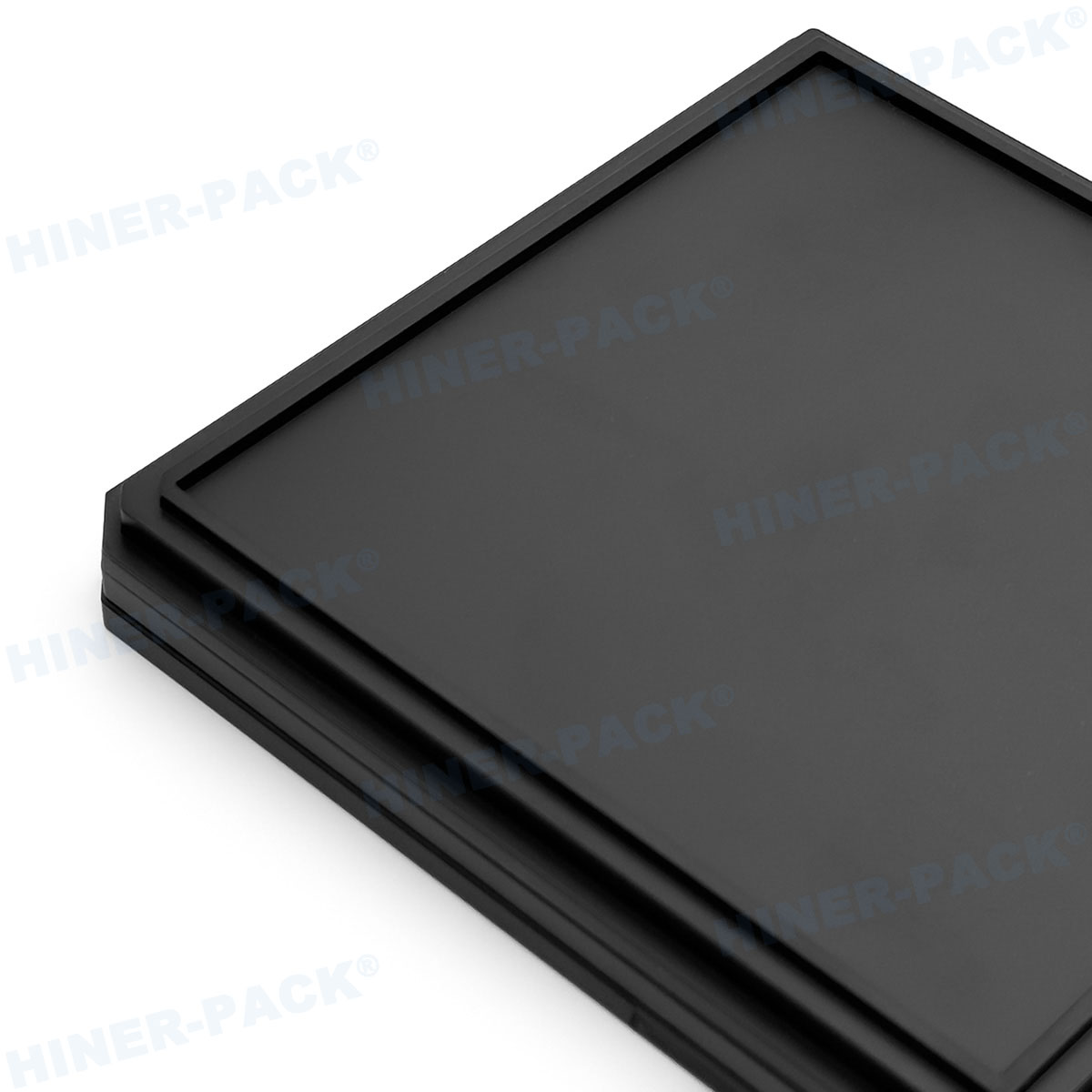

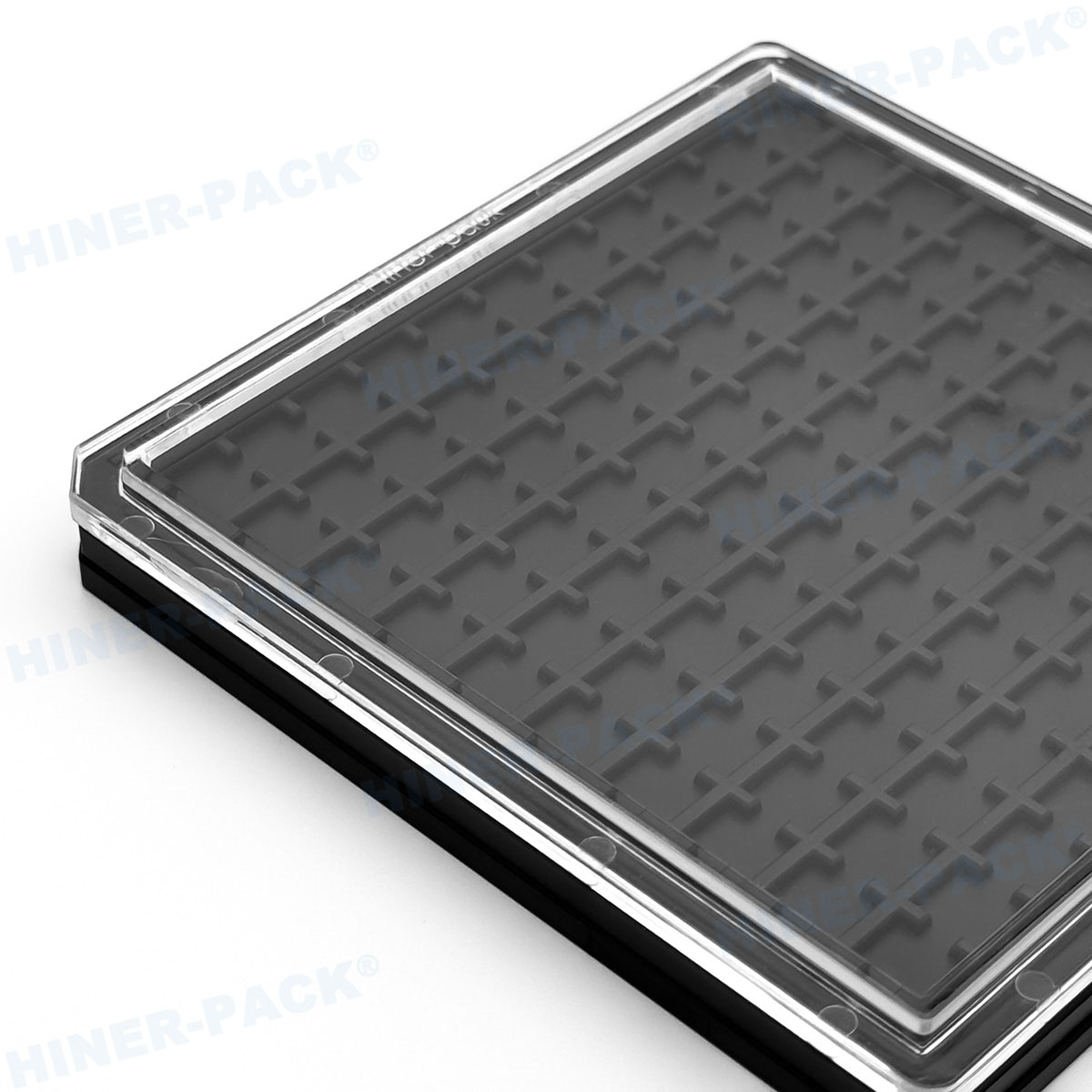

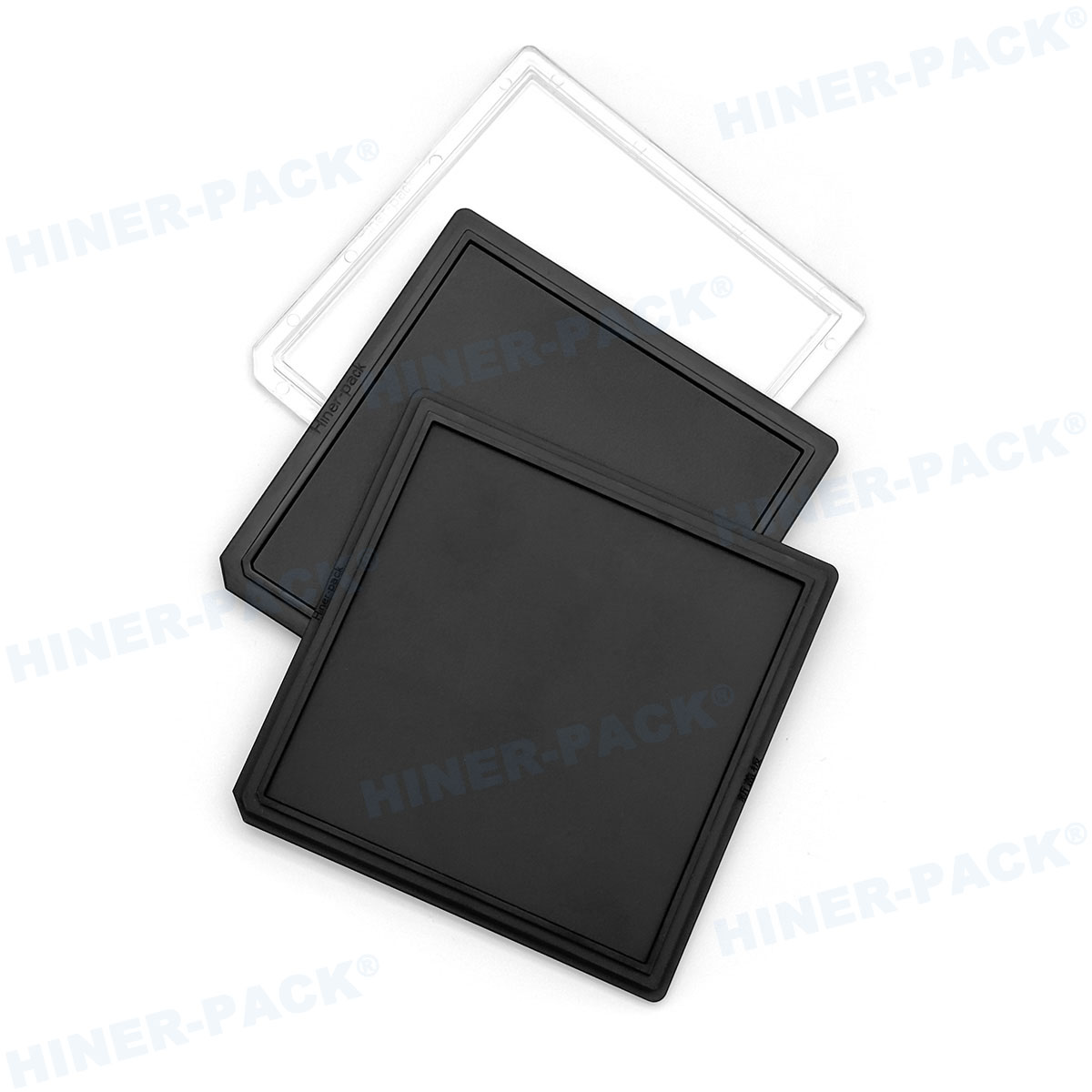

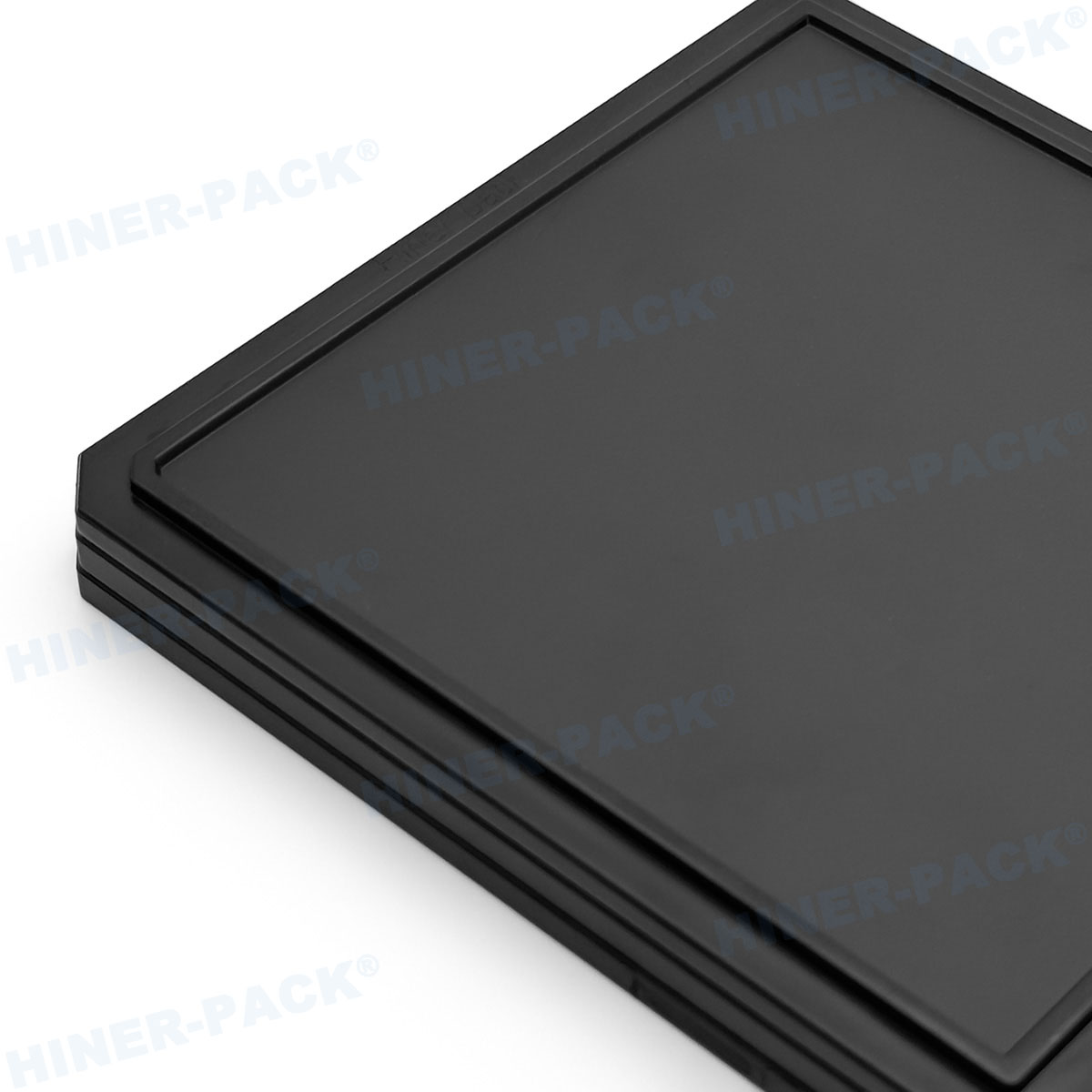

Cover/Lid For 4-inch Waffle Pack
Cover/Lid For 4-inch Waffle Pack
Cover/Lid For 4-inch Waffle Pack
Cover/Lid For 4-inch Waffle Pack
Cover/Lid For 4-inch Waffle Pack

Cover/Lid For 4-inch Waffle Pack

- Available in static-dissipative, conductive, or standard ESD-safe grades
- Transparent or opaque materials for easy visual inspection or light shielding
- High-purity polymers with low outgassing and minimal particulate release, and clean-room compatible
- Dimensional stability to offset normal tray warpage
- Durable, reusable construction for cost-efficient operations
Tags：
Waffle Pack Cover Chip Tray Lid Bare Die Tray Cover Waffle Pack

Description

Hiner-pack waffle pack cover/lid prevents die from migrating out of waffle pack/chip tray pockets during shipping and handling. Designed to work with standard clips that tightly compresses the tray and lid to prevent die migration.

Reference Materials

  • Hiner-pack® 4-inch Waffle Pack & Chip Tray Catalog.pdf

    1528 KB
    Download

Application

Used to safeguard bare die, thin film substrates, ceramic components, or precision shims stored in industry-standard waffle packs and chip trays. It prevents damage, particle contamination, and loss of alignment during handling, shipping, and long-term inventory, ensuring devices remain securely seated and free from mechanical or environmental stress throughout the semiconductor packaging process.

Specifications

Part NumberTray Size & FuntionStyleColorCapacityMaterialOutline Size
HN25103-A4" Clip/Clamp1 Piece ClipBlack2PP102.67×100.59×6.5mm
HN25103-B4" Clip/Clamp1 Piece ClipBlack2PP102.67×100.59×7.2mm
HN25103-C4" Clip/Clamp1 Piece ClipBlack2PP102.67×100.59×8mm
HN251094" Clip/Clamp1 Piece ClipBlack6PP108.84X100.59X27.1mm
HN24151#287224" Clip/Clamp2 Pieces ClipSemi-Transparent2PP58×20.1×19.42mm
HN24151#287234" Clip/Clamp2 Pieces ClipSemi-Transparent6PP58×25.7×19.42mm
HN20394" Clip/Clamp2 Pieces ClipBlack2PP106.88×50.8×13.69mm
HN20754" Clip/Clamp2 Pieces ClipBlack3PP106.68×50.8×19.81mm
HN19574" Cover/Lip/Black / TransparentN/APC101.6×101.6×4.5mm
HN220704" Cover/Lip/BlackN/APC101.6×101.6×8mm
