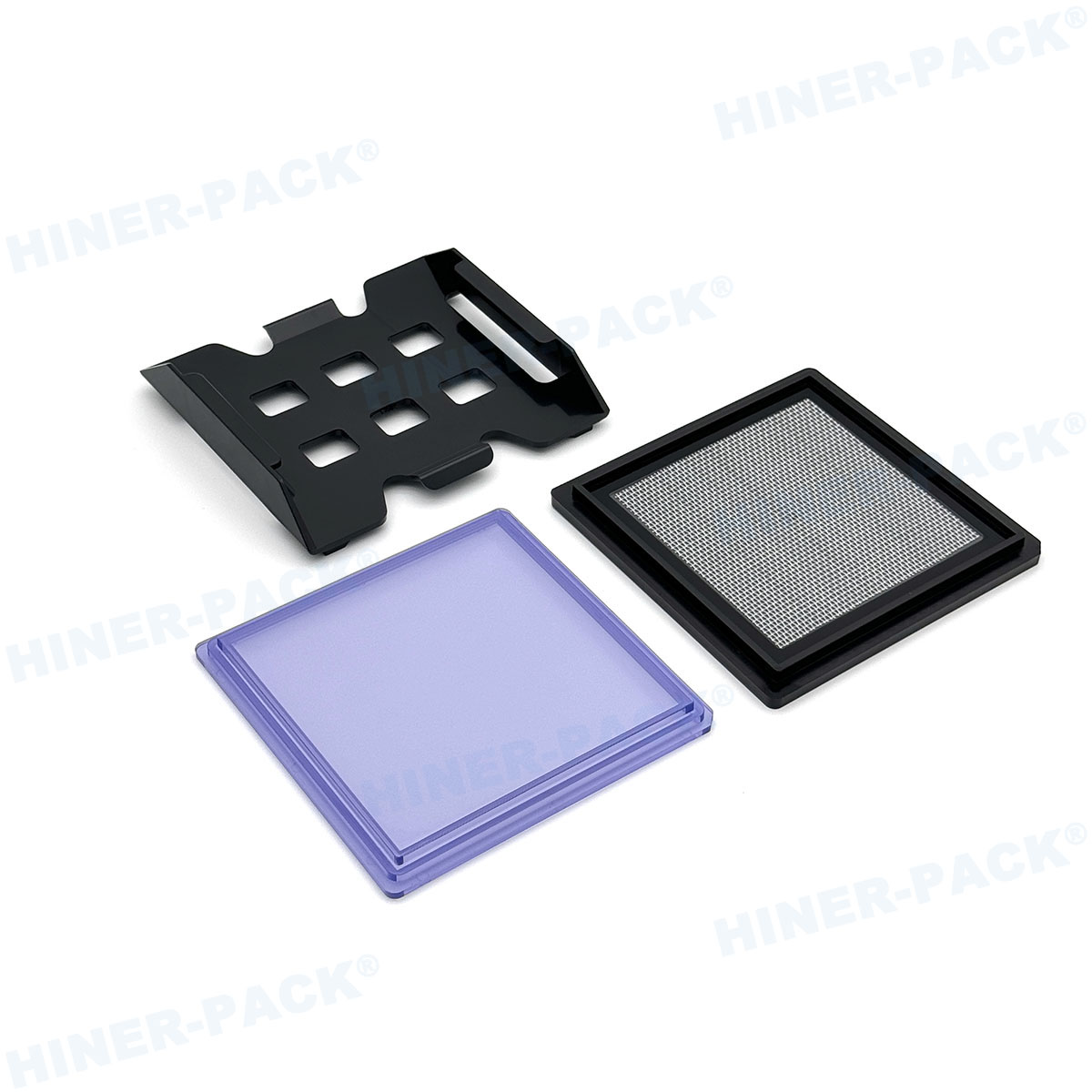

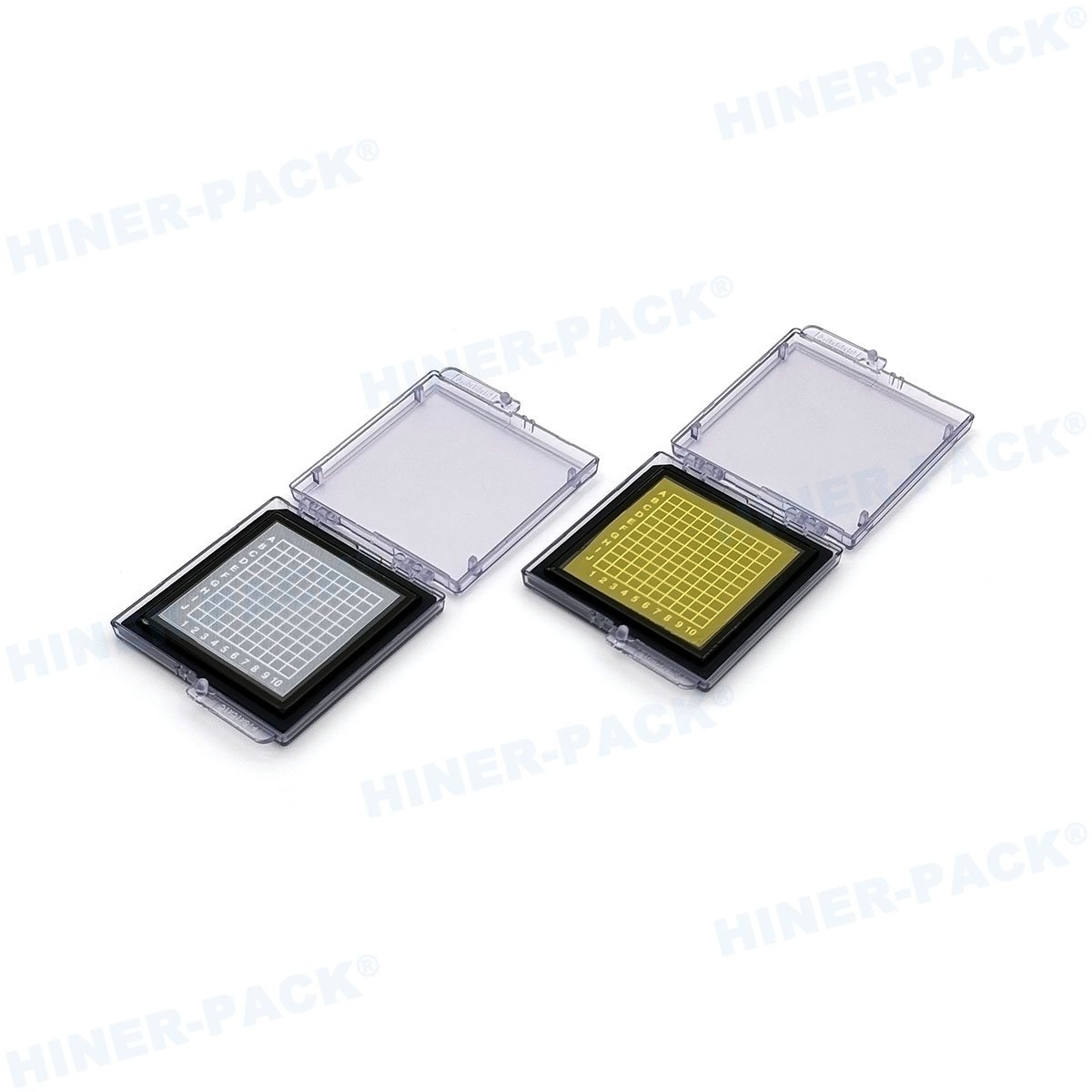

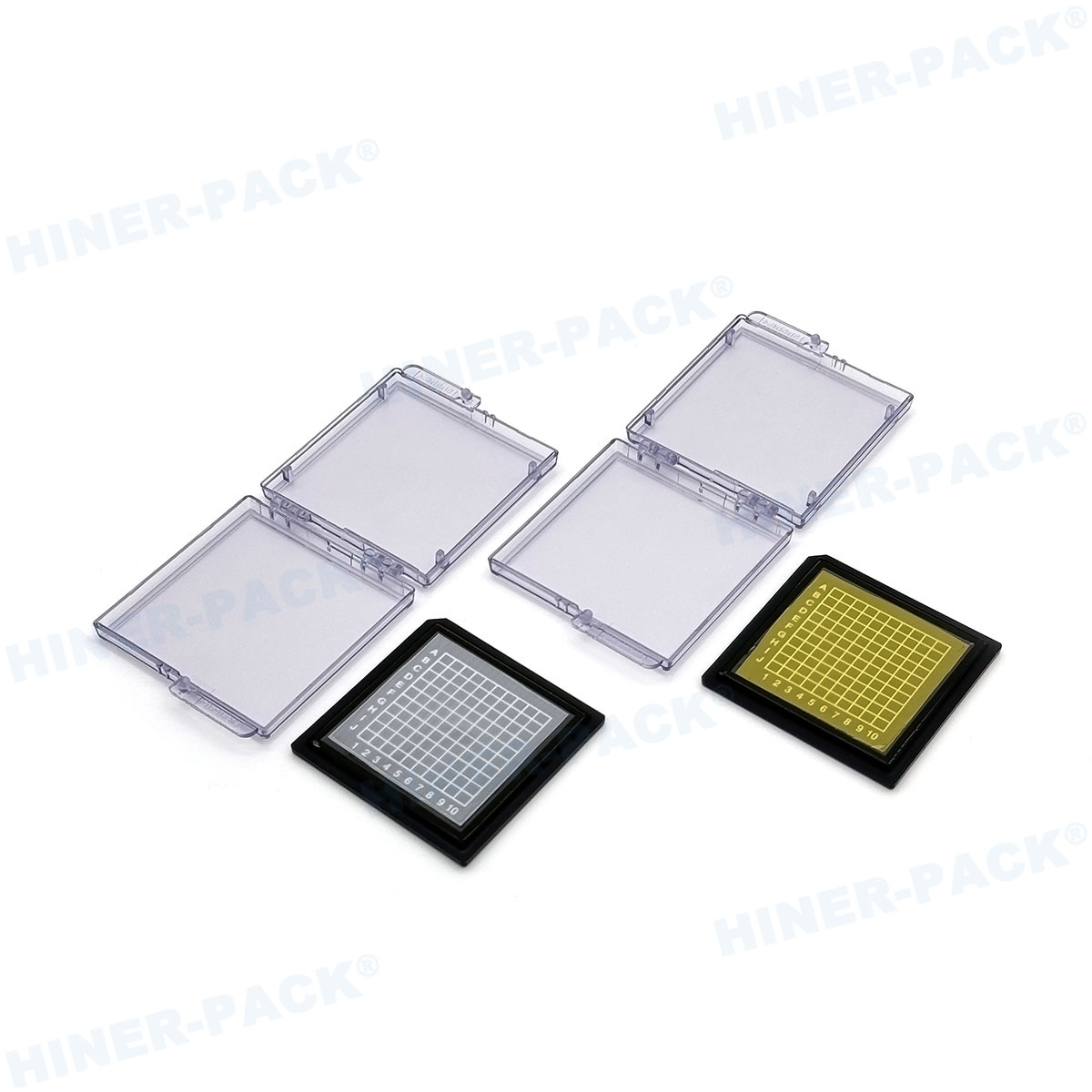

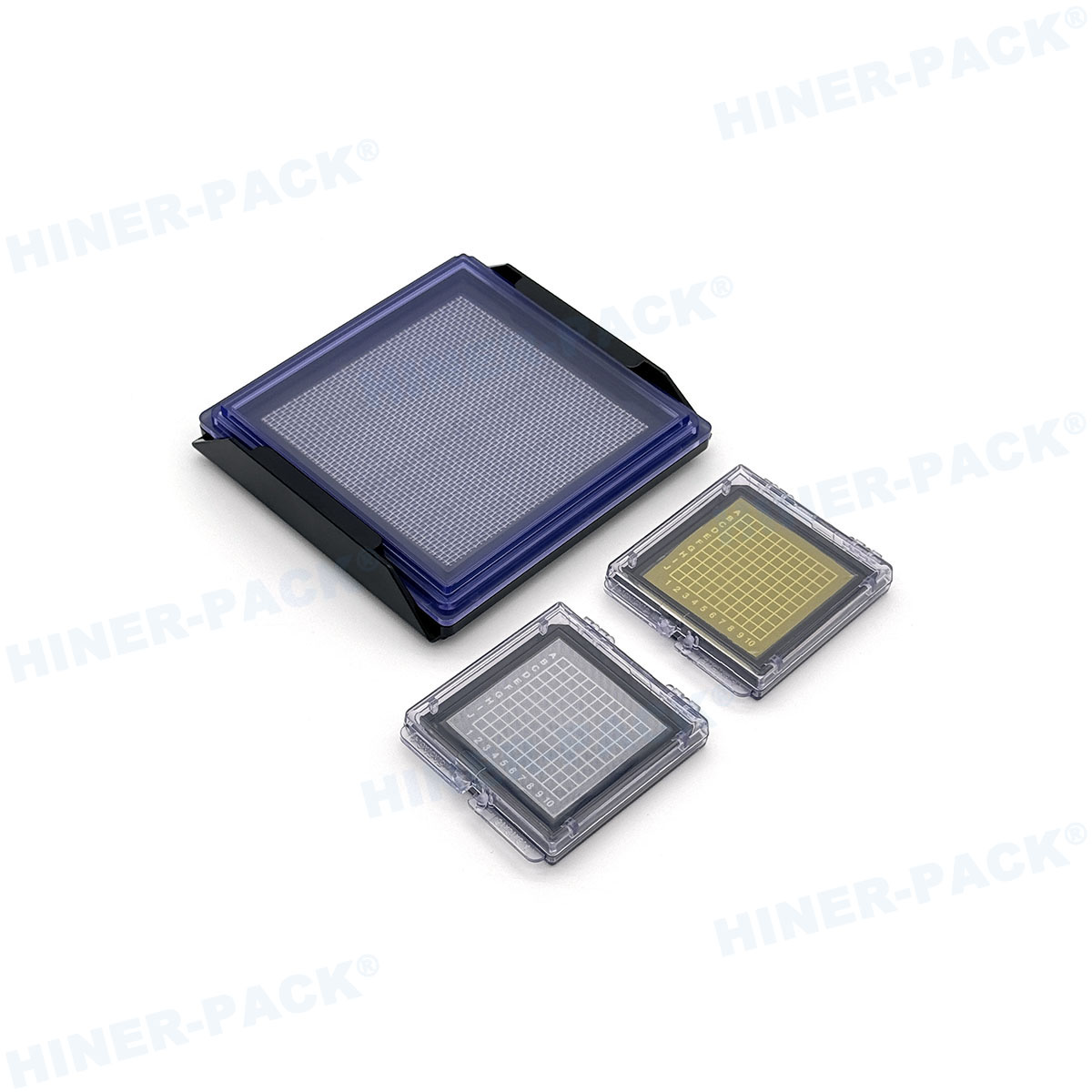

Vacuum Release Box is an extremely versatile “pocketless” tray that securely holds fragile devices including bare die during shipping, handling and processing. It is ideal for high-volume pick and place applications.
The surface of the VR carrier uses a proprietary gel film membrane over a mesh material to hold components in place until they are released by applying vacuum to the underside of the tray.
Ideal for:
• High-volume automated device Pick & Place applications.
• Extremely fragile or thin devices.
• Handling bare die.
• No contact with edges or top surface of device.
• Handling device sizes (X,Y) ranging from <250 micron to 75mm.
| Vacuum Release Box | ||||||
|---|---|---|---|---|---|---|
| Standard Size | Color Style | Dimensionsm | Viscosity Requirement | Mesh Number | Printing Line | Available Size |
| 2-inch | All Black Antistatic Clamshell Type Semi-black Antistatic Clamshell Type All transparent Antistatic Clamshell Type Black Antistatic Buckle Semitransparent Antistatic Buckle Type | External 61×55×10mm Inner 51×51×4mm | Ultra Low 450 Low 500 Medium 650 High 800 | 20 30 80 160 150 | 3×3mm-QTY 100 cells 1.52×1.44mm-QTY 400 cells 11.8×1.52-QTY 30 cells 6×6-QTY 36 cells | 36×36mm |
| 4-inch | Black Antistatic Buckle Semitransparent Antistatic Buckle Type | 107.2×107×15mm | Ultra Low 450 Low 500 Medium 650 | 20-400 Others can be customized | Others can be customized | 76.2×76.2mm |
