Snap-on Clips For 4-inch Waffle Pack

- Stops die movement and loss in transit
- Offsets normal tray or lid warpage that can create gaps leading to die migration
- Available in static-dissipative or conductive formulations

Top of Page

Description

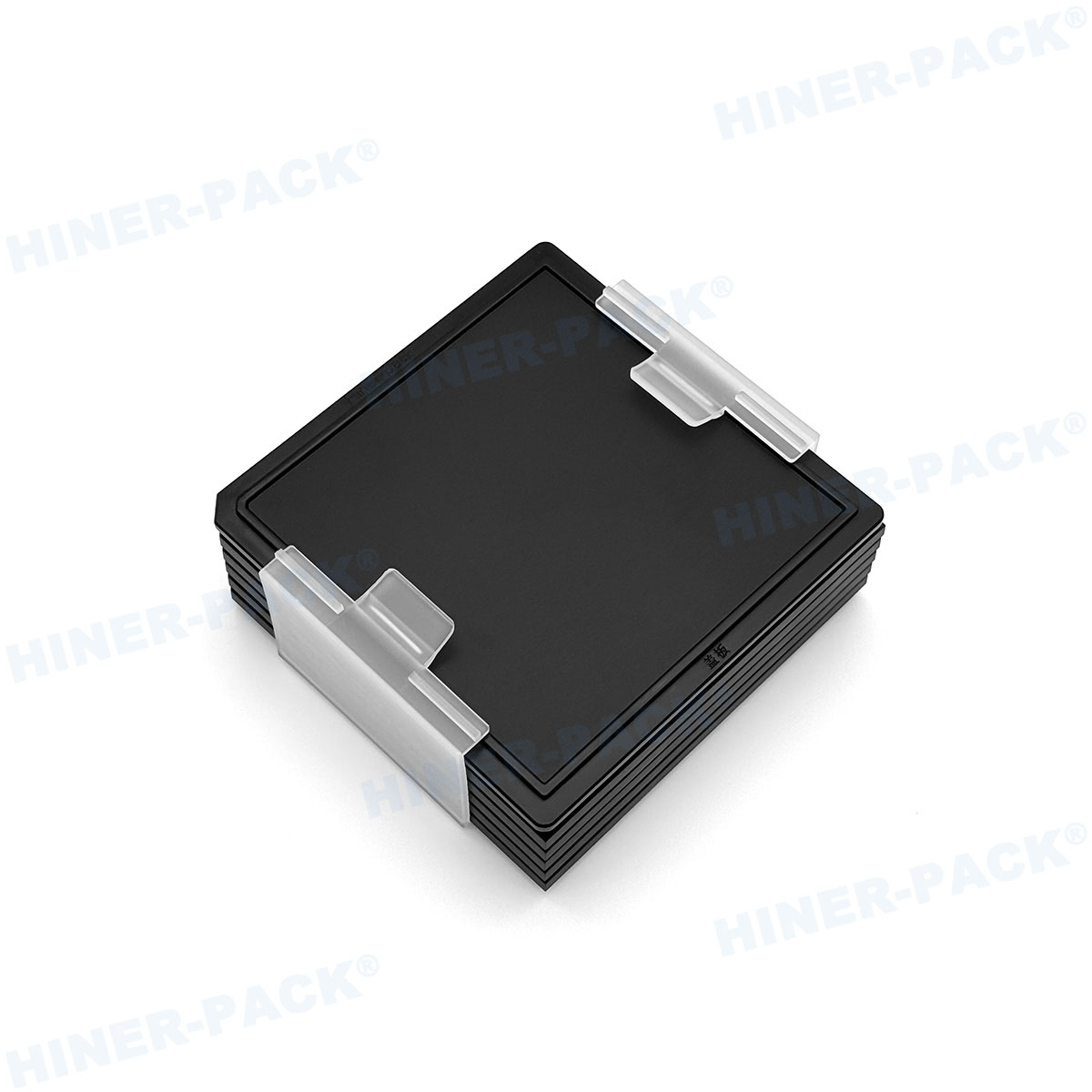

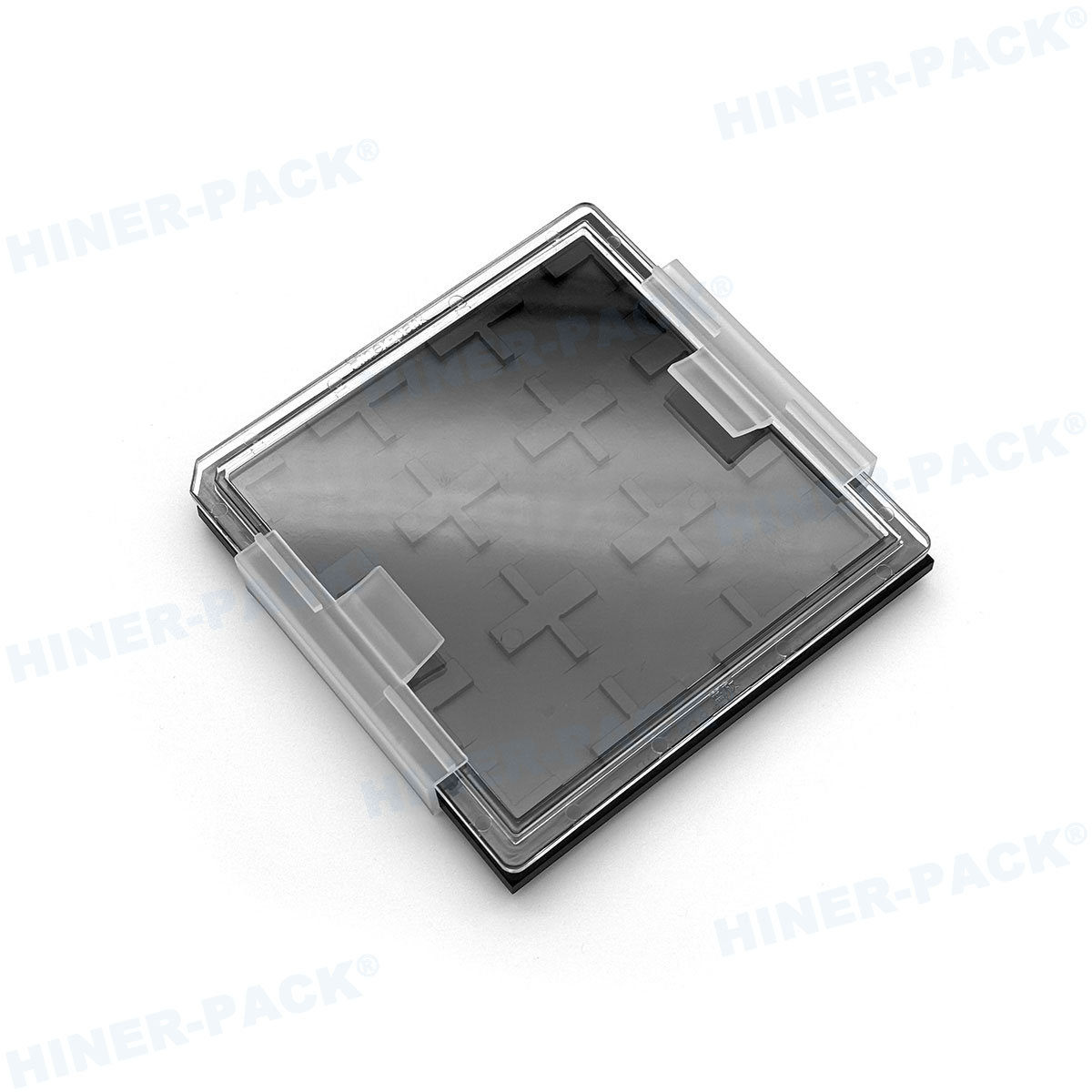

Waffle Pack/Chip Tray Clip is an accessory that locks the tray and cover together by applying uniform compression along the tray edges. This prevents die movement, offsets lid or tray warpage, and ensures stack stability during handling, shipping, or automated processing.

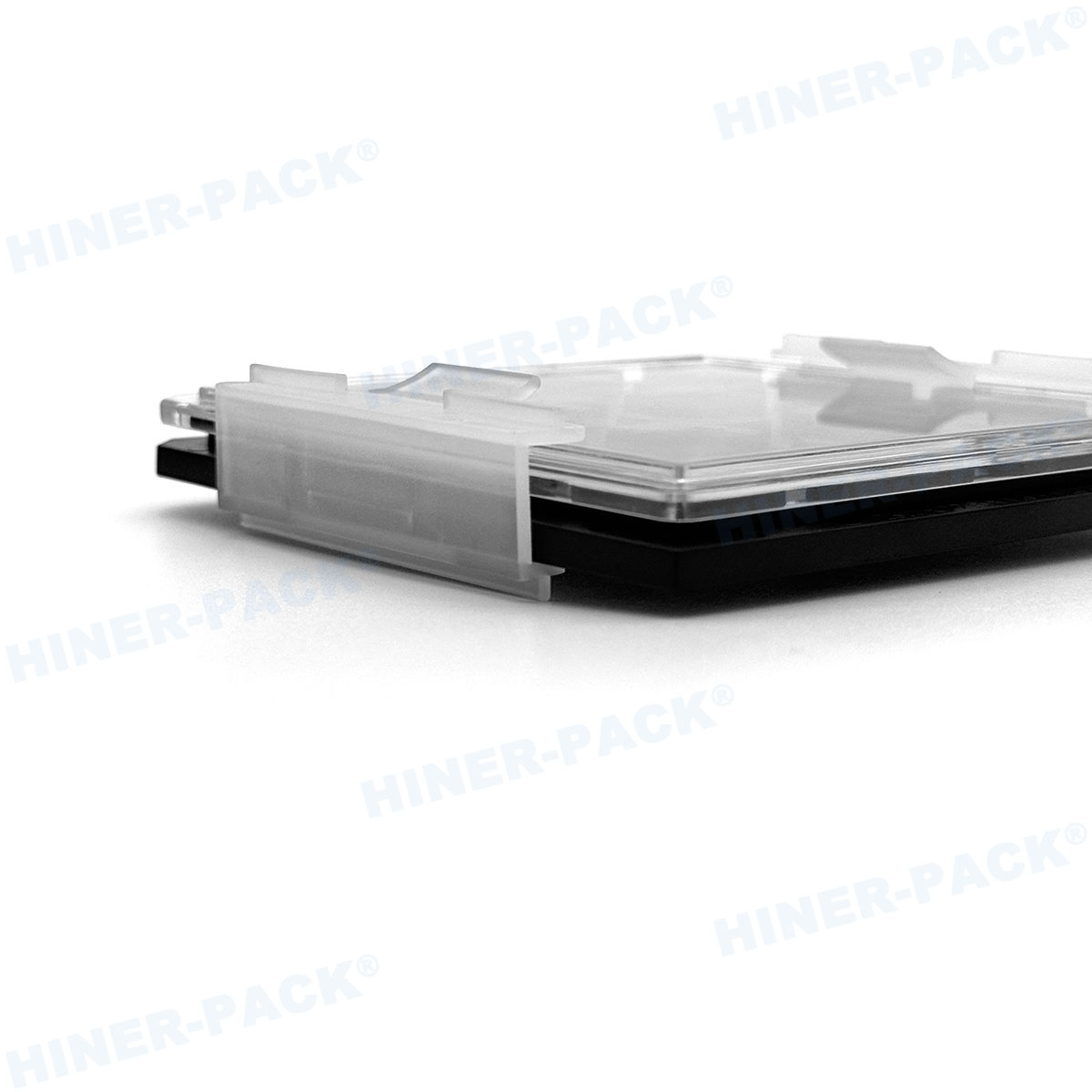

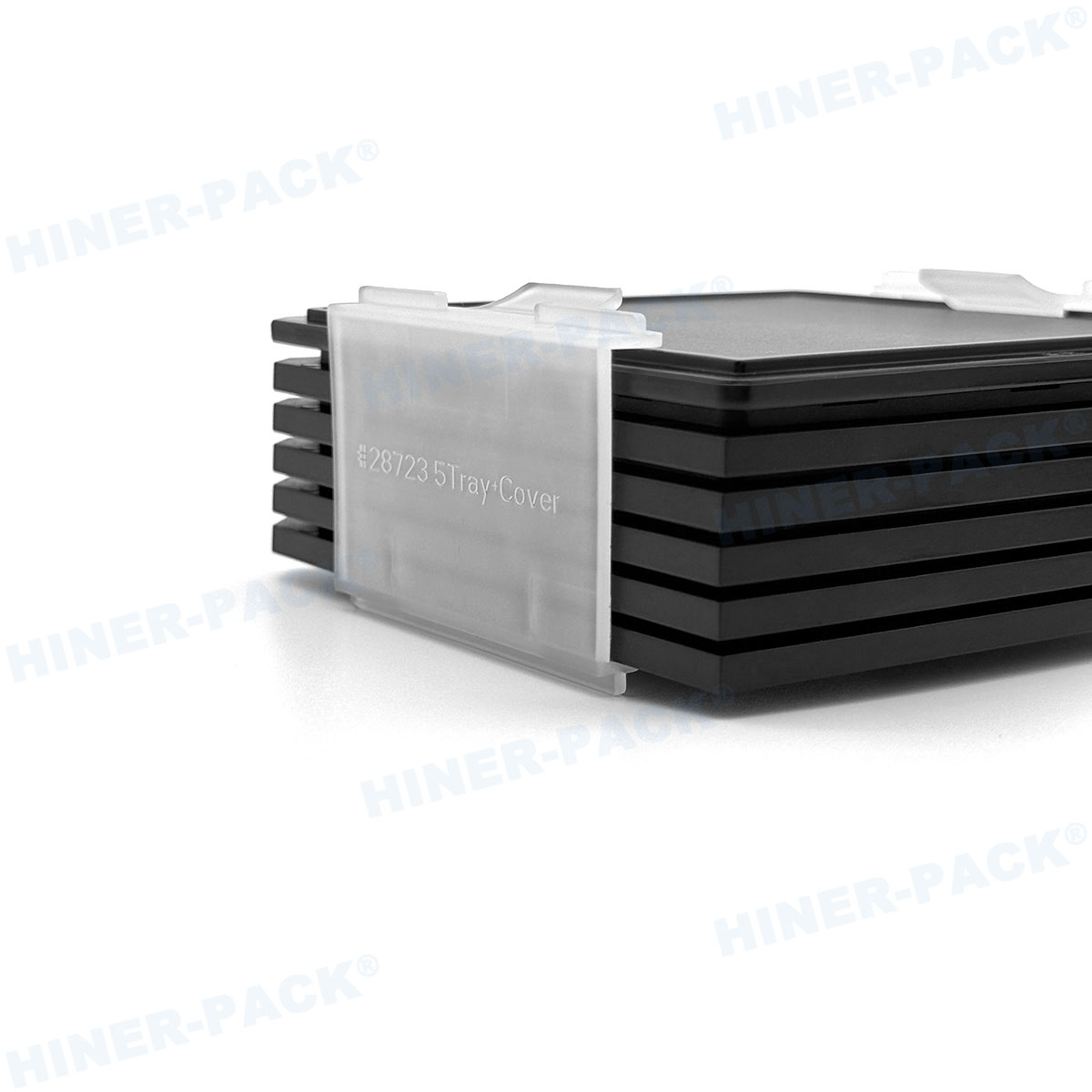

4-inch Waffle Pack Clip HN24151 holds stacked trays and covers with snaps, making it easier to manoeuvre than traditional clips. The height of the clip/clamp can be customised to fit chip trays of different thicknesses.

Reference Materials

Hiner-pack® 4-inch Waffle Pack & Chip Tray Catalog.pdf

1528 KB

Download

Application

Protects die and substrates such as thin film capacitors, shims, RF switches, MMICs, pedestals, etc. from damage when shipped in industry standard waffle pack chip trays.

Specifications

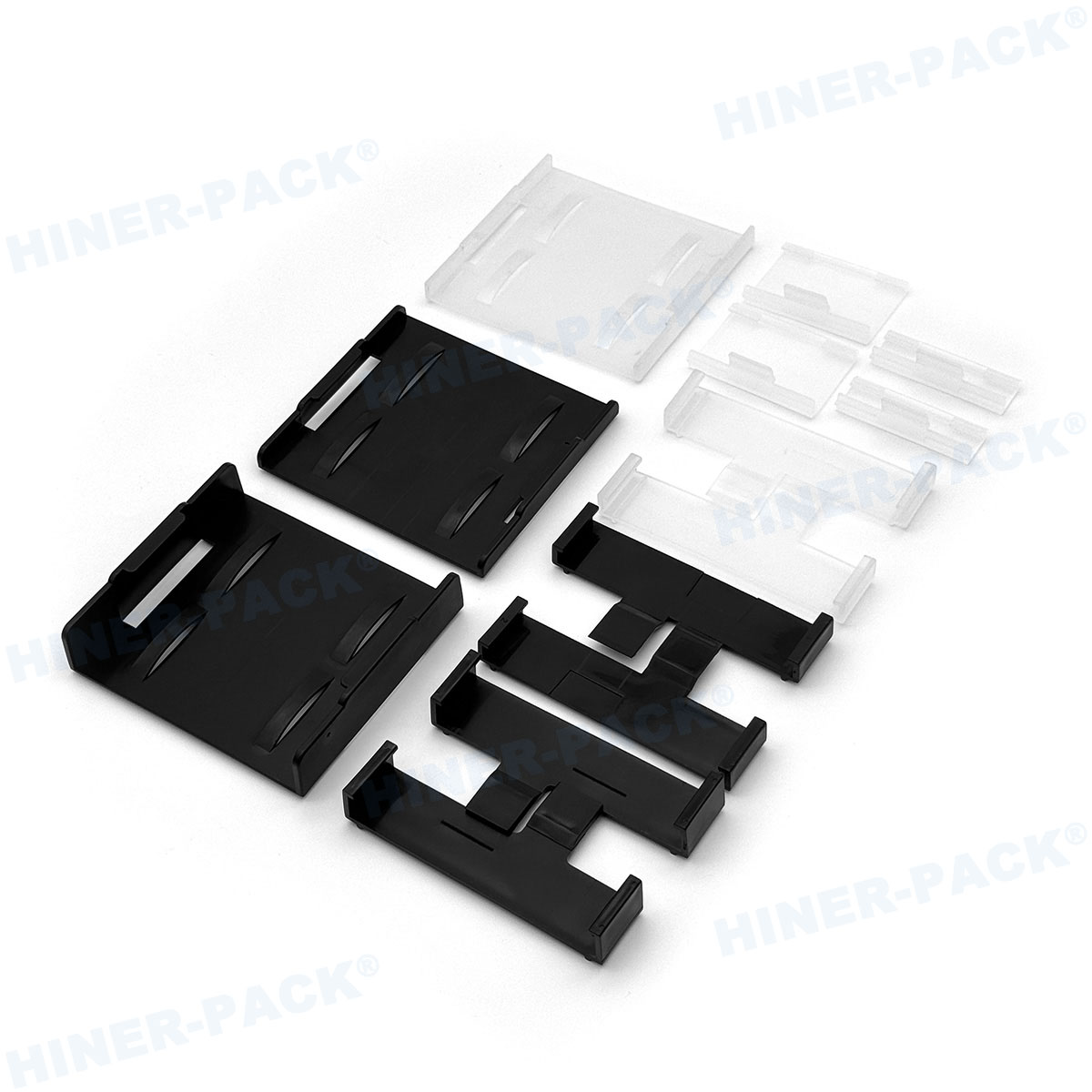

Part Number	Tray Size & Funtion	Style	Color	Capacity	Material	Outline Size
HN25103-A	4" Clip/Clamp	1 Piece Clip	Black	2	PP	102.67×100.59×6.5mm
HN25103-B	4" Clip/Clamp	1 Piece Clip	Black	2	PP	102.67×100.59×7.2mm
HN25103-C	4" Clip/Clamp	1 Piece Clip	Black	2	PP	102.67×100.59×8mm
HN25109	4" Clip/Clamp	1 Piece Clip	Black	6	PP	108.84X100.59X27.1mm

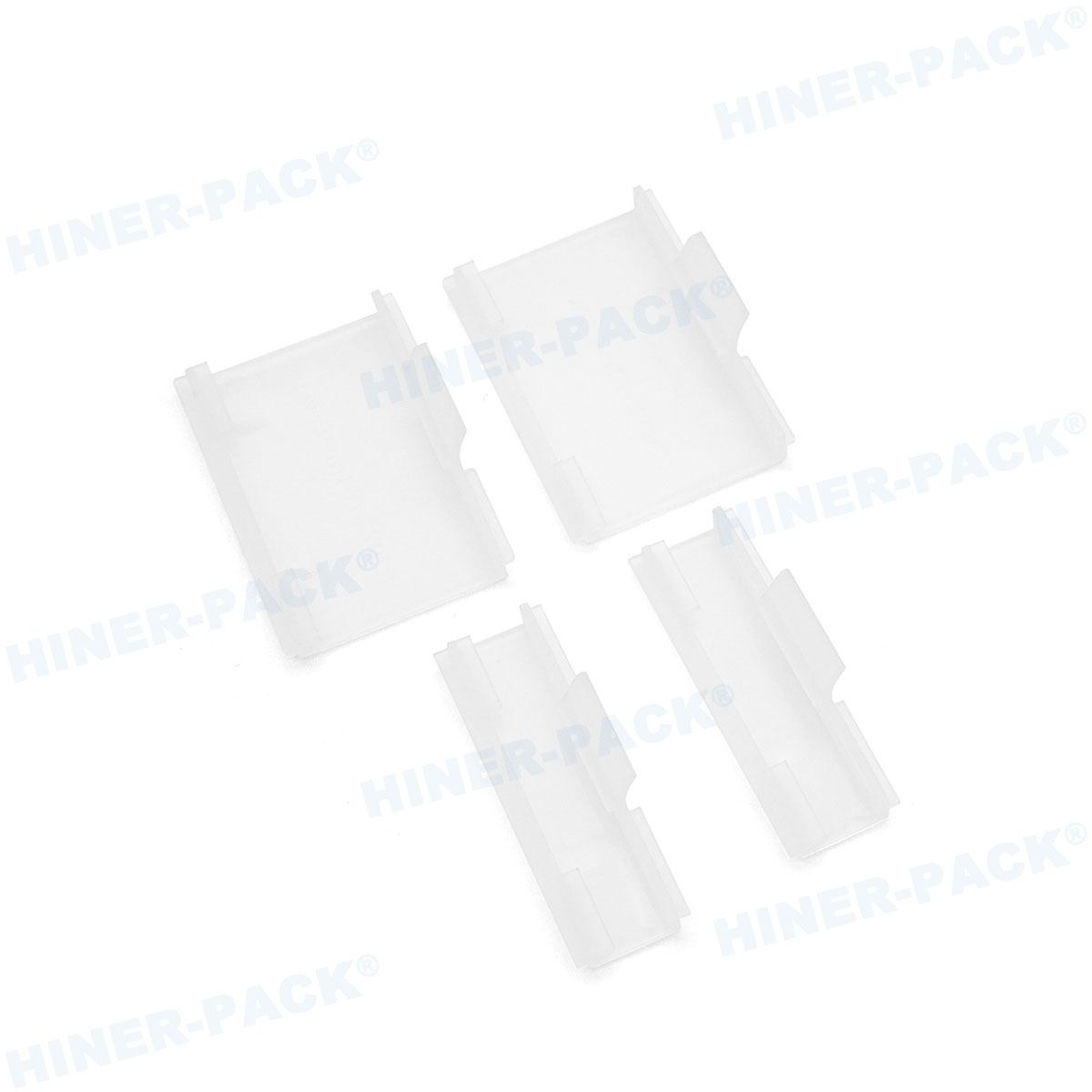

HN24151#28722	4" Clip/Clamp	2 Pieces Clip	Semi-Transparent	2	PP	58×20.1×19.42mm
HN24151#28723	4" Clip/Clamp	2 Pieces Clip	Semi-Transparent	6	PP	58×25.7×19.42mm
HN2039	4" Clip/Clamp	2 Pieces Clip	Black	2	PP	106.88×50.8×13.69mm
HN2075	4" Clip/Clamp	2 Pieces Clip	Black	3	PP	106.68×50.8×19.81mm
HN1957	4" Cover/Lip	/	Black / Transparent	N/A	PC	101.6×101.6×4.5mm
HN22070	4" Cover/Lip	/	Black	N/A	PC	101.6×101.6×8mm
