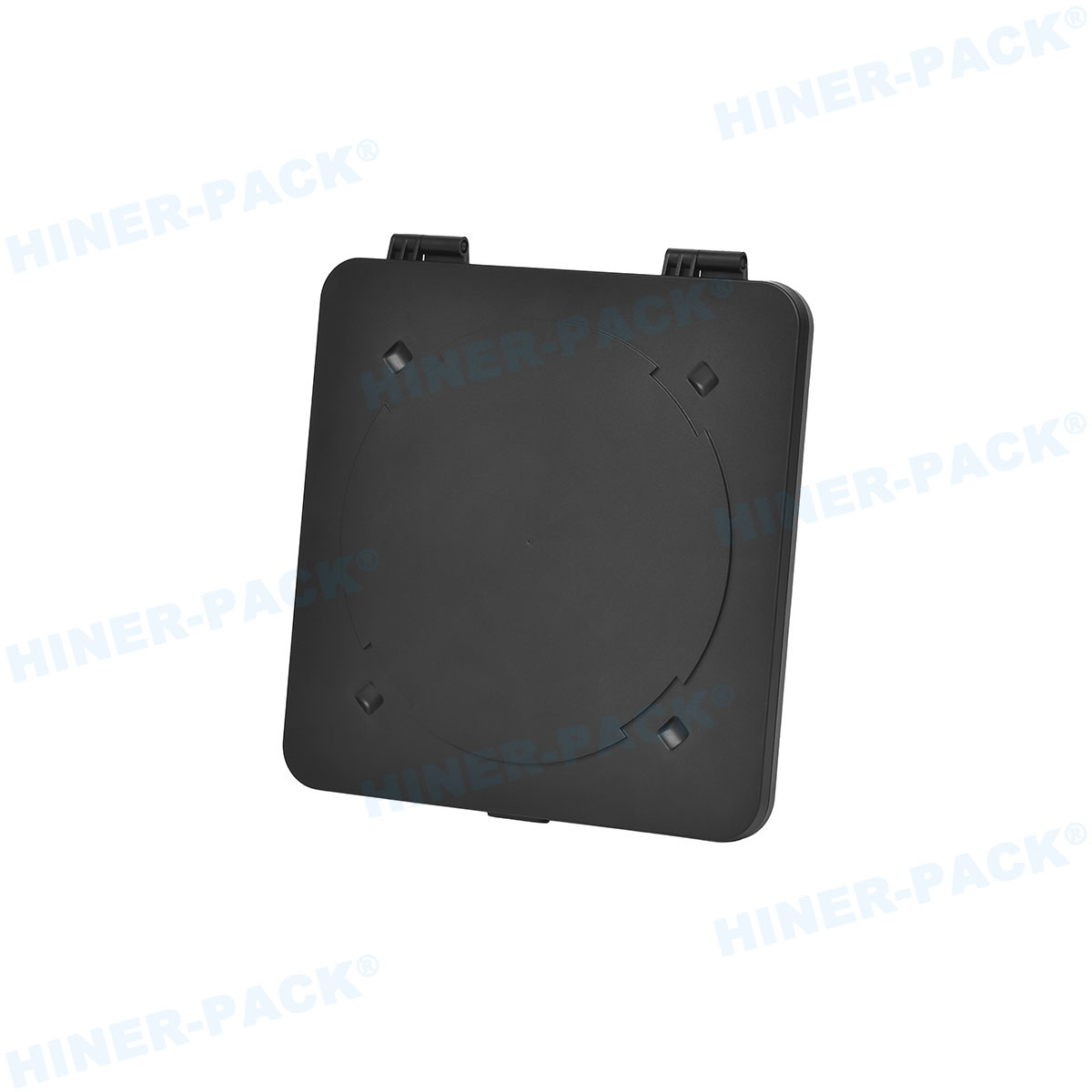

SHWS-8/1 Single wafer shipper with a square shaped design, suitable for an 8" (200mm) wafer, and comes with a hinged lid. Clamshell style single wafer shippers are used for safe transportation, storage and handling or your wafers or substrates. Designed for both in-fab transfers and secure external shipping, these carriers firmly lock the wafers or substrates within the hoop ring, preventing unwanted movement and minimizing the risk of edge chipping or surface scratches. This stable holding mechanism ensures that wafers remain intact and contamination-free throughout every stage of semiconductor processing.
This single wafer shipper is different from the traditional vacuum-formed single wafer shipper in that it is injection molded by a precision mold, which is more stable in structure and stronger in material, and can better protect highly sensitive and expensive wafers from mechanical damage during storage, transfer, or transportation.
• Single-wafer shipping with hoop/expander/grip ring for minimal wafer contact
• Cleanroom transport of sensitive wafers
• Wafer transfer between process stages
• Shipping wafers to customers or other facilities
| BASIC INFORMATION | ||
|---|---|---|
| Part Number | Collocation Reference | Wafer Size |
| SHWS-8/1 | Wafer Shipper+Hoop Ring | 8"/200 mm |
| Metarial | Maximum Capacity | Color |
| PC | 1 | Black |
| Delivery Time | Usually 2-3 weeks, depending on order quantity |
* For more sizes or customization needs, please contact our team. We offer one-stop packaging solutions for your products.
| TECHNICAL DATA | ||
|---|---|---|
| PROPERTY | TEST METHOD | RATED VALUES |
| Density | ASTM D–792 | 1.23 g/cm³ |
| Melt Index (280°C/5kg) | ASTM D–1238 | 31.0 g/10min |
| Shrinkage Percentage | ASTM D–955 | 0.5 % |
| Tensile Strength | ASTM D–638 | 650 kgf/cm² |
| Tensile Elongation | ASTM D–638 | 4.0 % |
| Flexural Strength | ASTM D–790 | 1000 kgf/cm² |
| Flexural Modulus | ASTM D–790 | 20000 kgf/cm² |
| LZOD Notch Impact Strength (3.2mm) | ASTM D–256 | 10 kgf-cm/cm |
| Distortion Temperature (1.82MPa) | ASTM D–648 | 120 °C |
| Surface Resistivity | ASTM D–257 | 1.0×107 Ω/sq |
* The above data are typical laboratory values and are only used as a reference, not as a guarantee for quality indicators or any other use.
