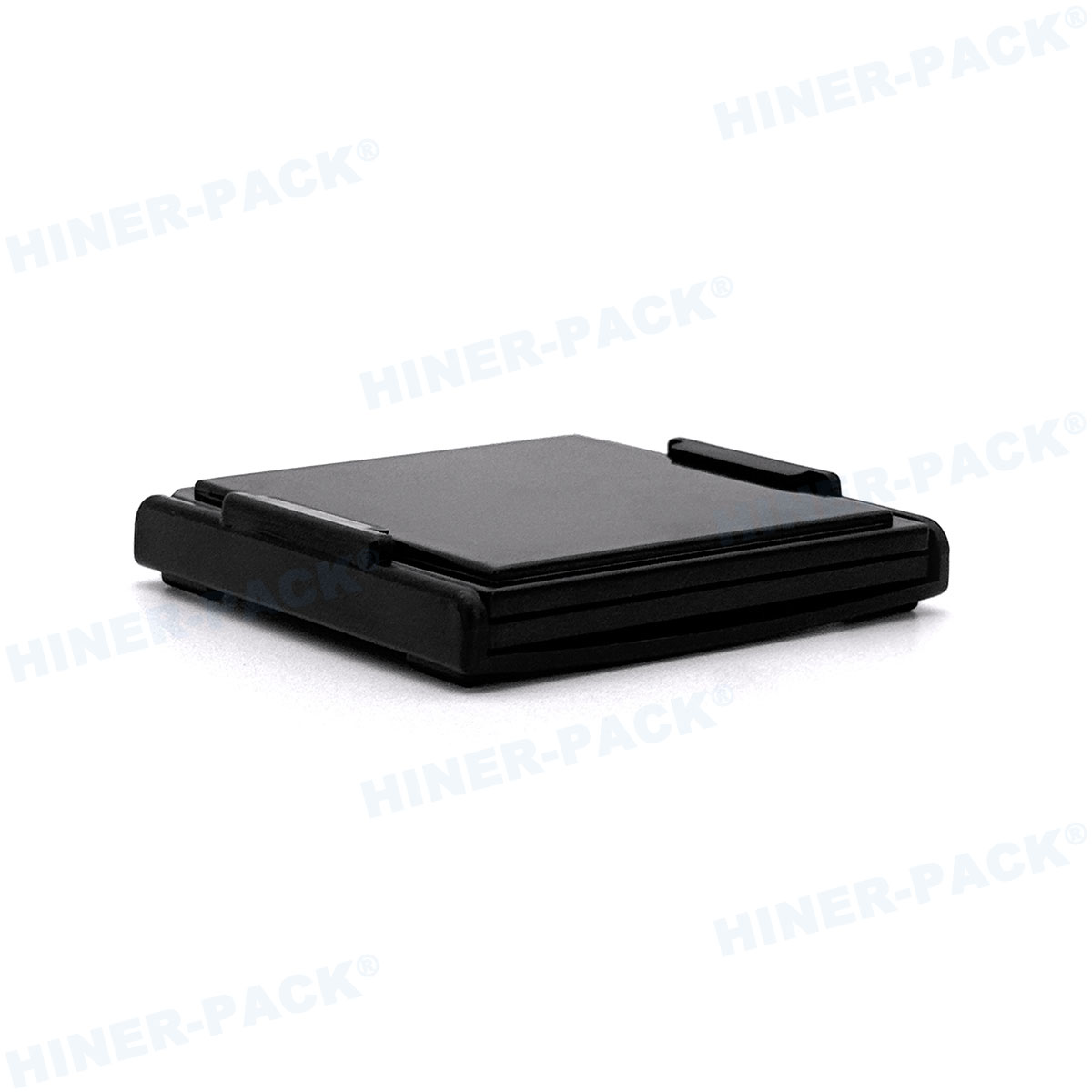

Cover/Lid For 2-inch Waffle Pack

- Available in static-dissipative, conductive, or standard ESD-safe grades
- Transparent or opaque materials for easy visual inspection or light shielding
- High-purity polymers with low outgassing and minimal particulate release, and clean-room compatible
- Dimensional stability to offset normal tray warpage
- Durable, reusable construction for cost-efficient operations

Tags：

Top of Page

Description

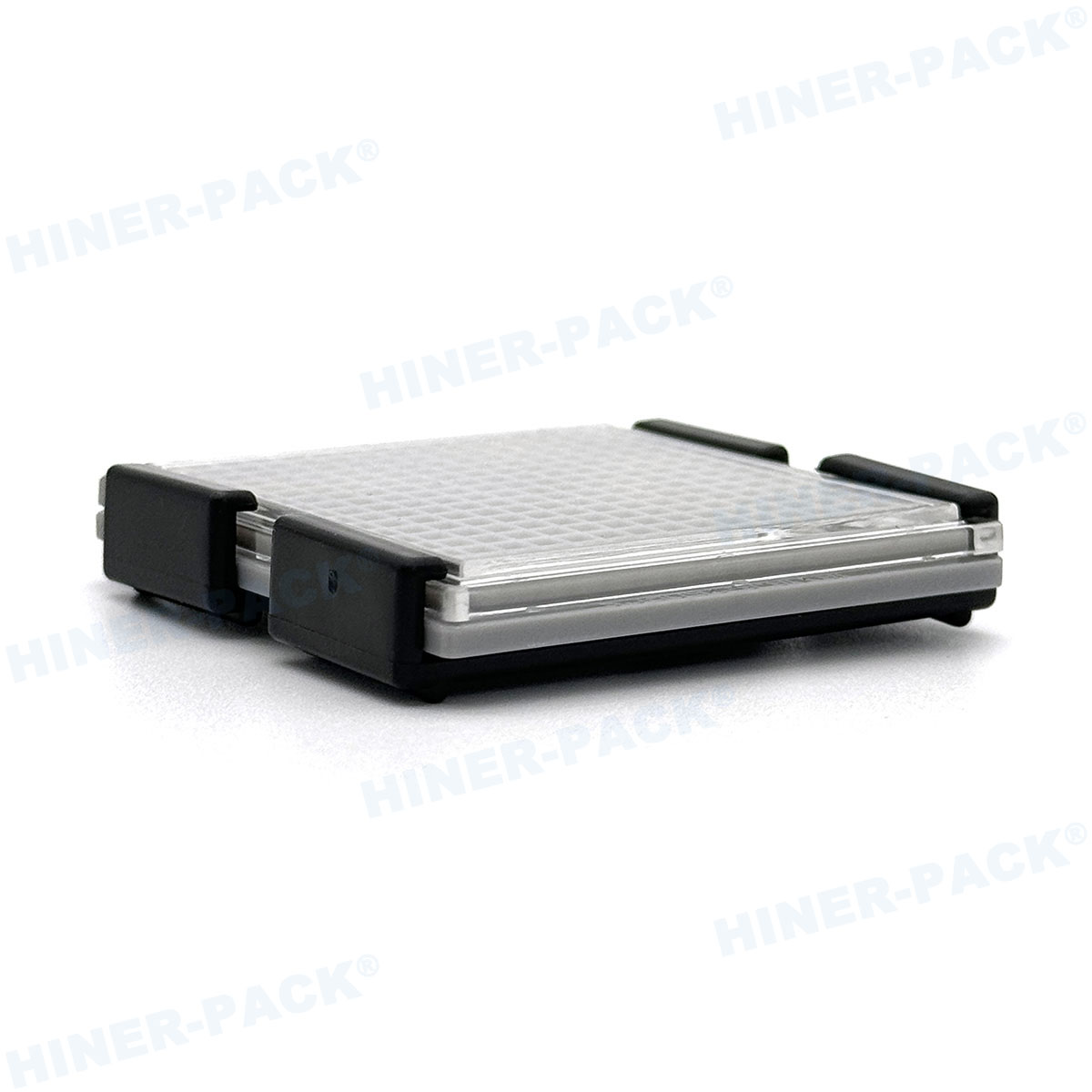

Prevent thin semiconductor dice from shifting out of waffle-pack or chip-tray pockets during shipping and handling. The lid works in tandem with a precision-engineered clip that applies even compression across the tray and cover.

Reference Materials

Hiner-pack® 2-inch Waffle Pack & Chip Tray Catalog.pdf

976 KB

Download

Application

Used to protect bare die, thin film components, and other fragile devices from particle intrusion, scratches, and displacement within tray pockets, maintaining cleanliness and positional stability throughout wafer-level packaging, R&D sampling, in-process storage, and secure transit between facilities.

Specifications

Part Number	Tray Size & Function	Style	Color	Capacity	Material	Outline Size
HN2097	2" Clip/Clamp	1 Piece Clip	Black	2	Antistatic-PP	55.2×51.5×10.6mm
HN21110	2" Clip/Clamp	1 Piece Clip	Black	2	PP	55×50.61×11mm
HN1923	2" Clip/Clamp	2 Pieces Clip	Black	2	HIPS	55.3×37.3×10.5mm
HN22113	2" Clip/Clamp	Spring Bo×	Black	11	PP	56.12×56×34.98mm
HN1616	2" Cover/Lip	Reverse side with grid-like bumps	Black	N/A	Conductive ABS	50.7×50.7×3.5mm
HN1950	2" Cover/Lip	Reverse side is smooth	Transparent	N/A	Transparent PC	50.7×50.7×3.5mm
