Engineered for safe handling of delicate wafers during shipping and storage

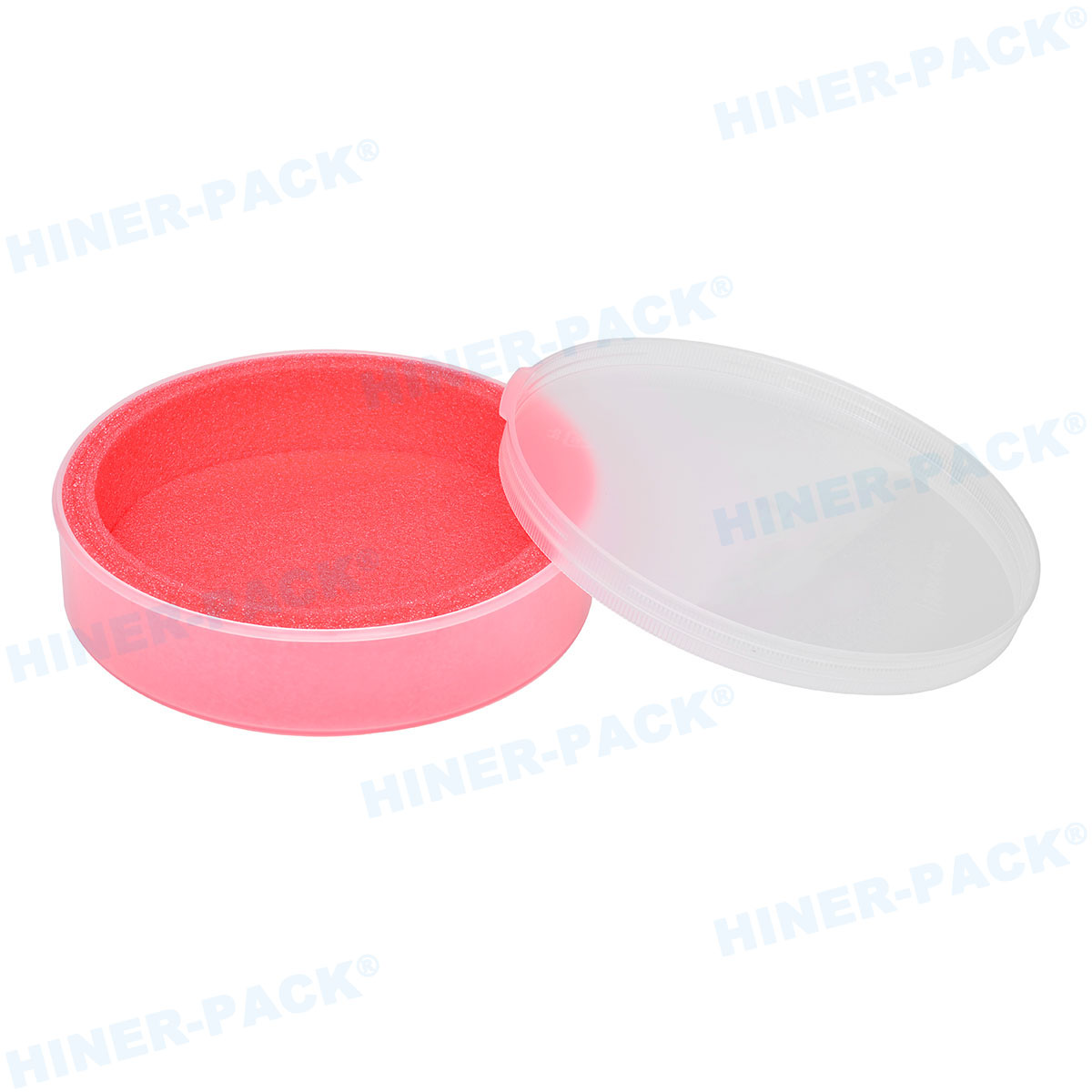

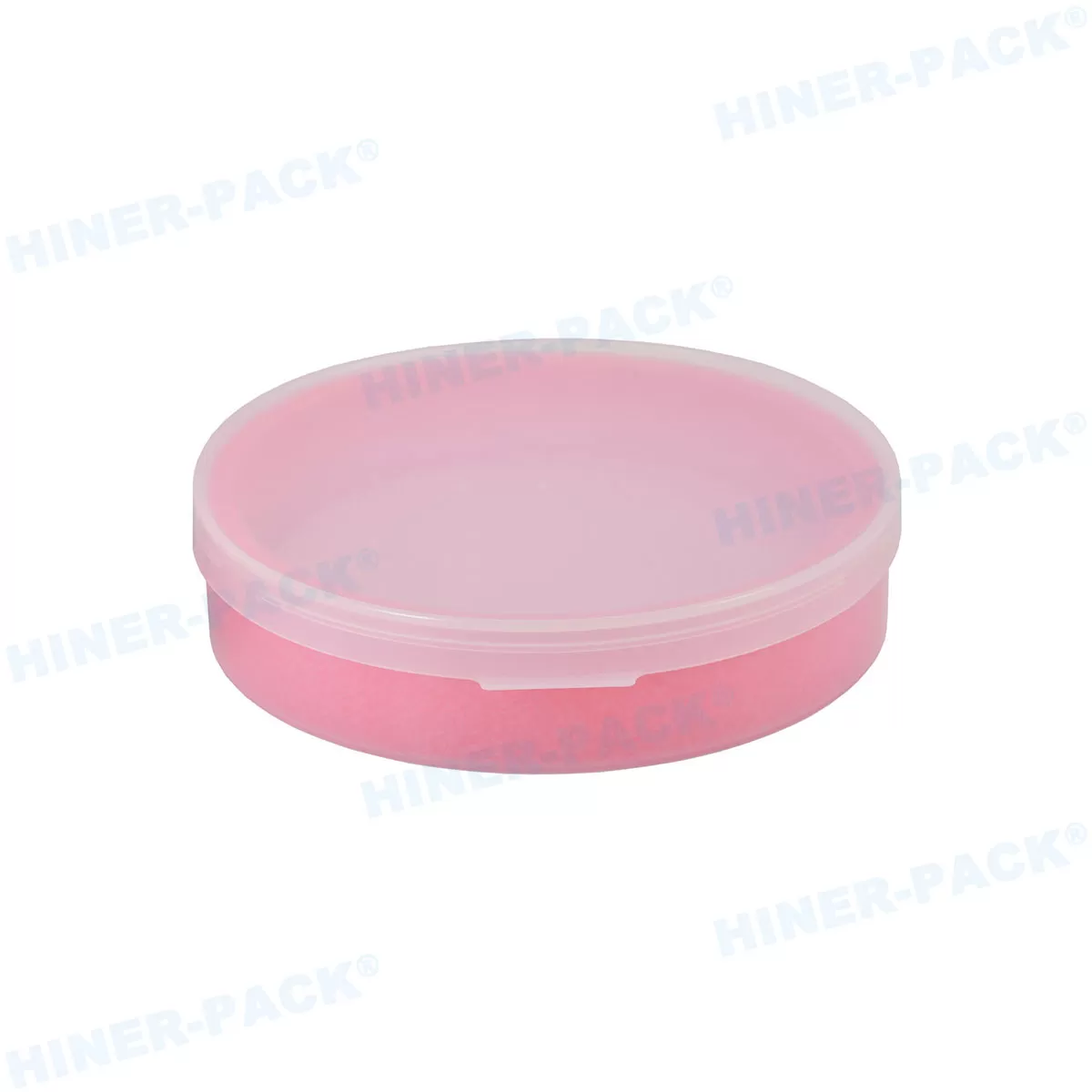

Wafer jars offer a cost-effective multi-wafer storage and transport solution, ideal for non-sensitive wafers. These jars are molded from natural polypropylene and fitted with secure lids to prevent accidental opening. Inside, interleaf separators, foam cushion disks, and liner foam walls form a multi-layer protective environment that isolates wafers from mechanical shock, vibration, and direct surface contact. Available in sizes for 150 mm and 200 mm wafers (customised sizes are available), and in clear, white, or black for inspection or ESD control. The stackable design optimizes cleanroom storage, while the reusable construction reduces packaging waste. From in-fab storage to inter-fab shipping, wafer jars deliver reliable contamination prevention and physical protection for high-value wafers throughout the production cycle.
Manual loading is straightforward, making these jars ideal for non-automated environments. This layered protection system is widely used for cleanroom storage and transport of finished wafers with minimal contamination risk.
• Bulk wafer storage and transport
• Cleanroom-based manual packing
• Multiple wafer protection during shipment
• Cost-effective solution for non-sensitive wafer handling
| BASIC INFORMATION | ||
|---|---|---|
| Part Number | Collocation Reference | Wafer Size |
| MHWJ-8/25-203/50-NP | Bottom+Foam+Interleaf+Liner+Top | 8"/200 mm |
| Metarial | Maximum Capacity | Color |
| PP | 25 | Transparent |
| Delivery Time | Usually 2-3 weeks, depending on order quantity |
* For more sizes or customization needs, please contact our team. We offer one-stop packaging solutions for your products.
| TECHNICAL DATA | ||
|---|---|---|
| PROPERTY | TEST METHOD | RATED VALUES |
| Density | ISO 1183 | 0.9 g/cm³ |
| Melt Index | ISO 1133 | 15 g/10min |
| Melting Point | DSC | 146°C |
| Distortion Temperature | ISO 75 | 95°C |
| Vicat softening temperature | ISO 306 | 125°C |
| Tensile Strength at Yield | ISO 527 | 280 kg/m² |
| Tensile Elongation at Break | ISO 527 | 300 % |
| Rockwell hardness R scale | ISO 2039 | 98 |
| Tensile Strain at Break | ISO 527-2 (50mm/min) | 10 % |
| Flexural Modulus | ISO 178 | 10500 kg/m² |
| Flow Shrinkage | FPC Method | 1.3~1.7 % |
| LZOD Impact Strength | ISO 180/23°C ISO 180/-20°C | 6 kg.cm/cm --- notch |
* The above data are typical laboratory values and are only used as a reference, not as a guarantee for quality indicators or any other use.
