In wet chemical etching, automated diffusion transfer, and cleanroom transportation, an incomplete or inaccurate wafer boat quotation is a major operational risk. A carrier quote that omits thermal stress thresholds, chemical compatibility ratings, or robotic pickup tolerances can lead to unexpected tooling modifications, automated robotic jams, and catastrophic wafer breakage inside wet benches.
Evaluating a semiconductor carrier proposal requires looking beyond the base unit price. Sourcing teams must evaluate the Total Cost of Ownership (TCO), lifetime cycle durability, and material purity. This engineering framework demonstrates how to audit a wafer boat proposal and outlines what to expect when requesting a line-ready quotation directly from Hiner-pack.
Need an expedited price review? Submit your wafer boat specifications to Hiner-pack for a detailed technical quote within 24 hours.
1. The 5-Point Technical Audit for Every Wafer Boat Quotation
Before accepting a supplier's quote, verify that the proposal provides clear engineering data across the following five critical manufacturing parameters:
Chemical Exposure Limits: The quotation must state resin compatibility with specific acids (such as Hydrofluoric, Sulfuric, and Hydrochloric acids) or solvents, ensuring the polymer will not leach organic extractables or metallic ions into wet processing baths.
Robotic Centerline Tolerances: Carrier slot pitch and sidewall parallelisms must be guaranteed within sub-millimeter tolerances to ensure seamless integration with automated Equipment Front End Modules (EFEM) and AGVs.
Permanent Electrostatic Resistance: The proposal must verify permanent surface resistivity ($10^4 - 10^9\ \Omega/\text{sq}$) compliant with ANSI/ESD S20.20. Surface-treated antistatic sprays must be rejected, as they wash away during deionized (DI) water rinsing.
Cleanroom Washing & Particulate Baseline: The quote should specify whether parts are molded in controlled environments, processed through ultrasonic DI water cleaning lines, and vacuum-sealed in an ISO-certified cleanroom.
Thermal Warpage Thresholds: For carriers used in bake-out or vacuum degassing, the quotation must clearly state the continuous heat-deflection temperature (HDT) of the resin.
2. Cost-Per-Cycle (CPC) Analysis: The True Measure of Carrier Value
A lower upfront unit quote does not guarantee lower operating costs. Low-grade polymers deform after repeated chemical baths, requiring premature replacement. High-performance carriers from Hiner-pack deliver a significantly lower Cost-Per-Cycle (CPC) across continuous operational runs:
| Carrier Formulation Grade | Initial Unit Cost Index | Estimated Usable Cycles (Chemical / Wash) | Cost-Per-Cycle (CPC) Rating | Primary Fab Process |
|---|---|---|---|---|
| Low-Grade Generic PP (Distributor) | Low ($) | 10 – 20 Cycles (Prone to warpage) | High (Frequent replacement & yield risk) | Single-use ambient transport only |

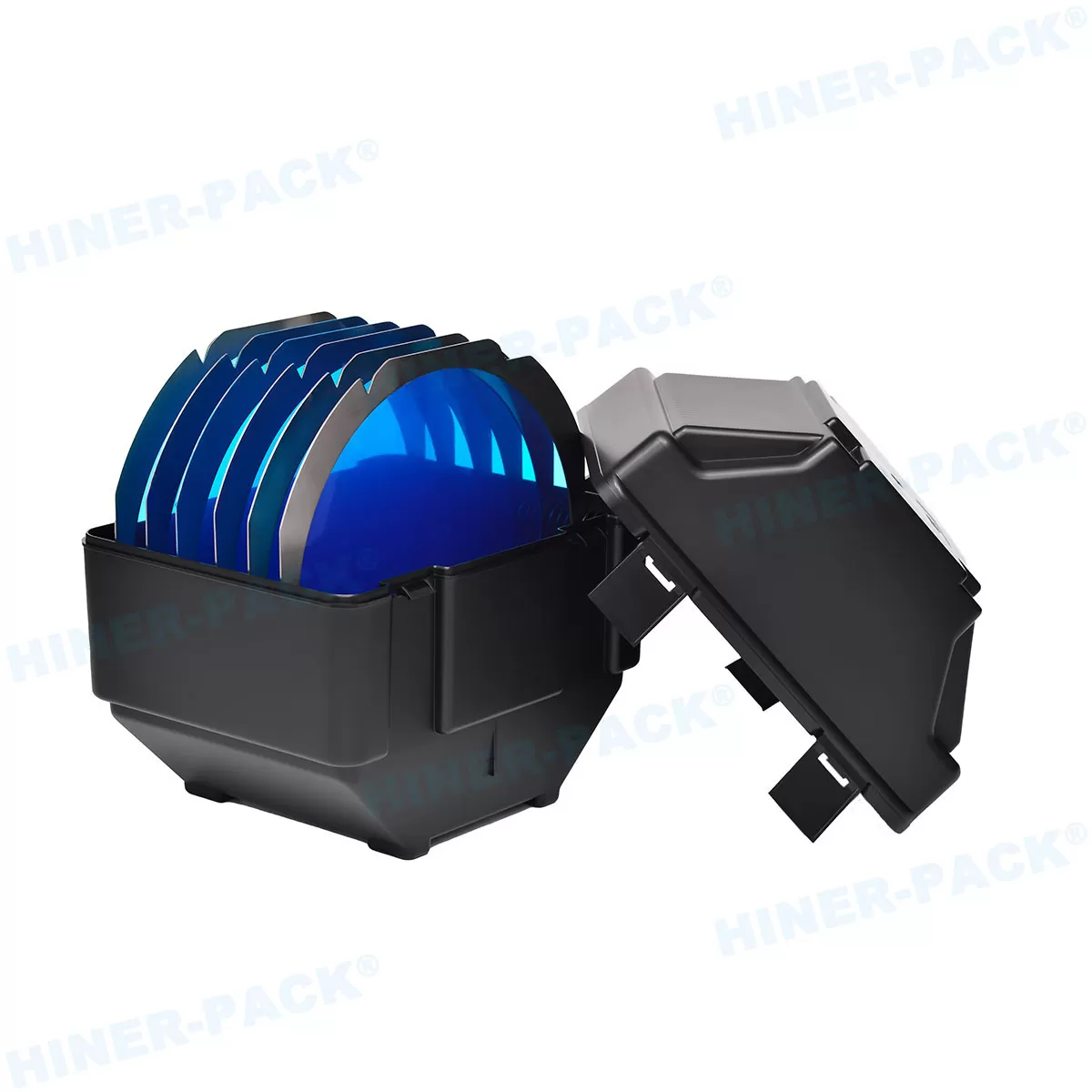

| Hiner-pack Conductive PP | Moderate ($$) | 100+ Cycles (Dimensional retention) | Low (Optimized for factory automation) | Automated sorting, inter-bay AGV transfer |
| Hiner-pack Static-Dissipative Resin | Moderate ($$) | 150+ Cycles (Permanent clean ESD) | Very Low (Zero particle shedding) | Cleanroom inspection, automated pick-and-place |
| Hiner-pack High-Temp PEEK / PES | High ($$$$) | 500+ Cycles (High-temp & acid resistant) | Lowest (Long-term asset durability) | In-line wafer bake, harsh chemical wet benches |
3. Anatomy of a Custom Tooling Quote (NRE & Prototyping)
When off-the-shelf standard cassettes do not accommodate proprietary wafer thicknesses, Silicon Carbide (SiC), Gallium Nitride (GaN), or specialized robotic arms, custom mold tooling (Non-Recurring Engineering / NRE) is required. A custom quotation from Hiner-pack details:
Design for Manufacturability (DFM) Assessment: In-depth mold flow simulation to prevent sink marks, control material shrinkage, and guarantee balanced injection fill.
Mold Steel Selection: High-grade hardened steel tooling designed to maintain micron-level tolerances over hundreds of thousands of injection cycles.
Prototype vs. Production Tooling Options: Low-cost single-cavity prototype molds for rapid line qualification, alongside multi-cavity production tooling for high-volume commercial scaling.
Tooling Rebate Amortization: Structured commercial programs where initial NRE tooling costs are credited back across scheduled mass production orders.
4. What You Receive in a Complete Hiner-pack Quotation
Founded in 2013 in Shenzhen, China, Hiner-pack is an integrated high-tech enterprise. Sourcing directly from our plant ensures complete technical transparency. Within 24 hours of your inquiry, our engineering sales desk delivers:
2D Engineering Drawings & 3D .STEP Files: Accurate digital models of the carrier geometry for your mechanical simulation and robotic clearance verification.
Comprehensive Polymer Material Datasheet: Detailed documentation of surface resistivity, continuous thermal rating, and outgassing analysis.
Tiered Volume Pricing Structure: Clearly defined unit price brackets for pilot validation (10–50 pcs), intermediate runs (500–2,000 pcs), and volume production (10,000+ pcs).
Complementary Packaging Sourcing: Optional line-item quotes for Wafer Shipper Accessories (conductive sponges, separator cushions), JEDEC IC Trays, Waffle Packs, and Vacuum Release Gel Boxes to consolidate your shipping expenses.
5. Direct RFQ Intake: How to Request Your Quotation Today
To receive a tailored, factory-direct quotation and 3D CAD models within 1 business day, provide the following specifications to our engineering team:
Substrate Dimensions: Diameter (2", 3", 4", 6", 8", 12" or custom) and thickness (μm).
Operating Environment: Wet bench chemicals, maximum process temperature (°C), and cleanliness classification.
Required Quantity: Pilot evaluation batch and projected annual volume.
Direct Engineering Quotation Desk: Email your specifications to rainbowzhu@hiner-pack.com for immediate processing.
Frequently Asked Questions About Wafer Boat Quotation
Q1: What technical details must be provided to receive a prompt wafer boat quotation from Hiner-pack?
A1: To ensure a fast and precise quote, provide your substrate diameter, wafer thickness, process chemistry (acids/solvents), maximum working temperature, and required ESD range (Conductive vs. Static Dissipative). If you have 2D/3D component drawings or robotic end-effector models, attaching them allows us to confirm dimensional compatibility within 24 hours.
Q2: How does Hiner-pack's factory-direct quotation eliminate hidden procurement expenses?
A2: Working directly with Hiner-pack bypasses distributor markups (saving 15% to 30%), provides in-house polymer compounding formulations, and grants direct access to our CNC and EDM mold tooling workshops. This direct structure prevents costly third-party communication delays and ensures complete material traceability.
Q3: Does Hiner-pack provide physical evaluation samples alongside the wafer boat quotation?
A3: Yes. For qualified engineering projects, Hiner-pack dispatches cleanroom-packaged standard stock samples within 48 hours. This allows your fab team to verify robotic handling alignment, dimensional fit, and ESD performance before approving volume purchase orders.
Q4: What is the typical lead time for custom OEM wafer boat tooling and sample delivery?
A4: For custom OEM/ODM tooling, Hiner-pack completes the DFM analysis within 1 to 2 business days. Prototype mold construction and First Article Inspection (FAI) sample delivery are completed in 15 to 25 business days following 3D CAD approval.
Ready to optimize your carrier procurement? Contact our technical sales engineering team at rainbowzhu@hiner-pack.com to receive your factory-direct wafer boat quotation and technical evaluation kit today.
